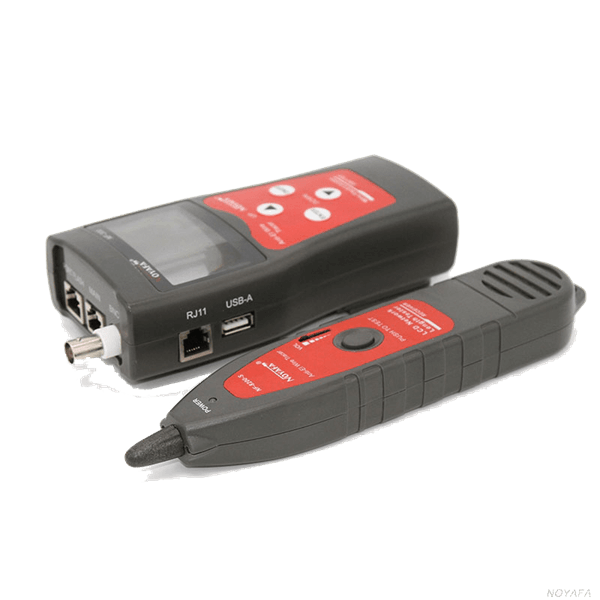

Noyafa NF-300 Coax Cable Tester, Wire Fault Locator with Anti-jamming
Noyafa NF-300 Coax Cable Tester, Wire Fault Locator with Anti-jamming
Couldn't load pickup availability
Fast, Free Shipping
Features
-

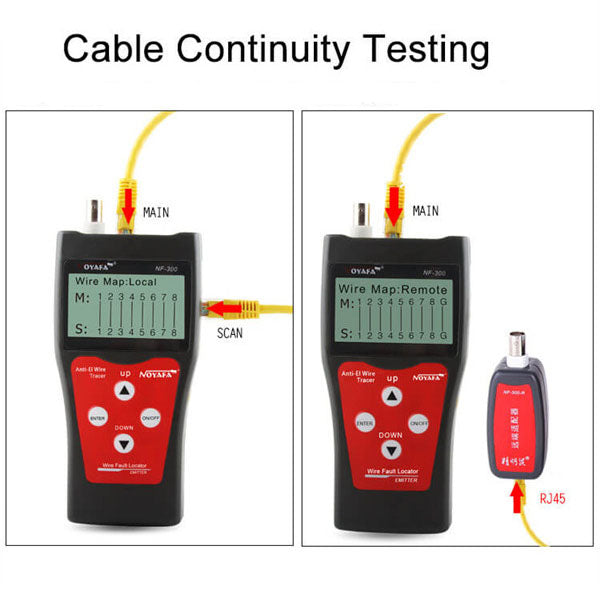

Wiremap Test - Check coax cable, RJ45, and RJ11?cable's continuous condition, such as open, short cross, and crosstalk
-
Locate and Breakage Point Accurately - Use a clip to connect the cable to the emitter, then the receiver generates a tone to identify the fault point
-

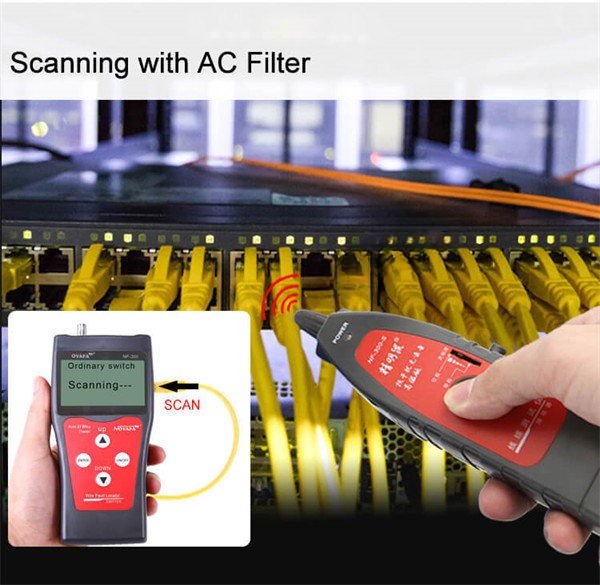

Fastly Cable Hunting - With excellent AC current rejection ability, it can quickly find the target BNC, RJ45, and RJ11 cable in a bunch of lines.
-
Up to 1000M Length Testing - Measures cable distances for coax cables and RJ45 cables and saves calibration data.
-

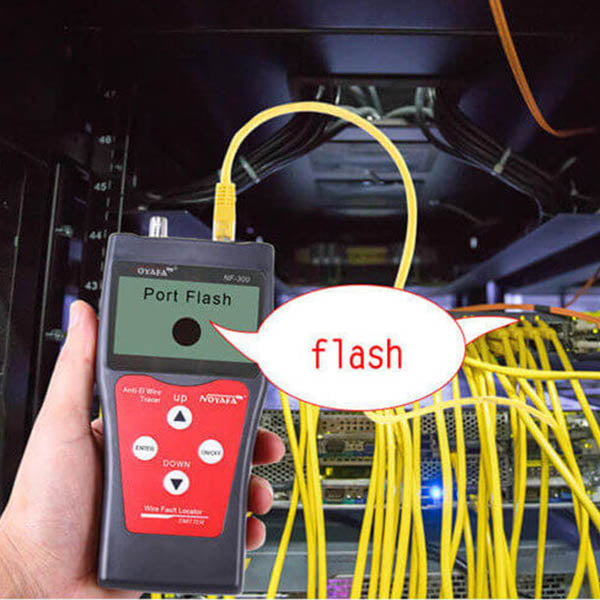

Port Flash Test - Hub blink for locating network port by the flashing port on Hub/Switch.
-

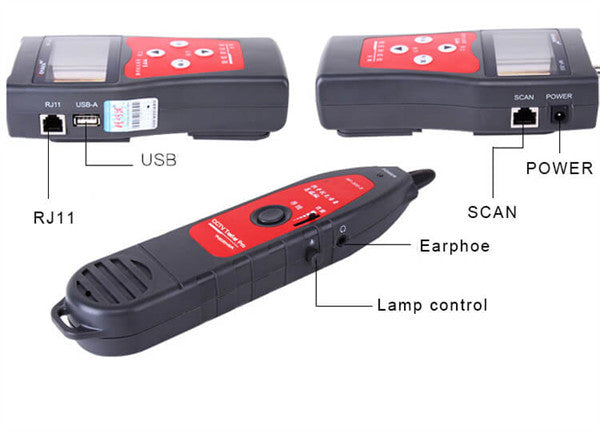

Earphone Jack- The receiver has a 3.5mm jack, so scan modes can be used in noisy environments.
-
Two Scan Modes - Ordinary switch/Poe switch

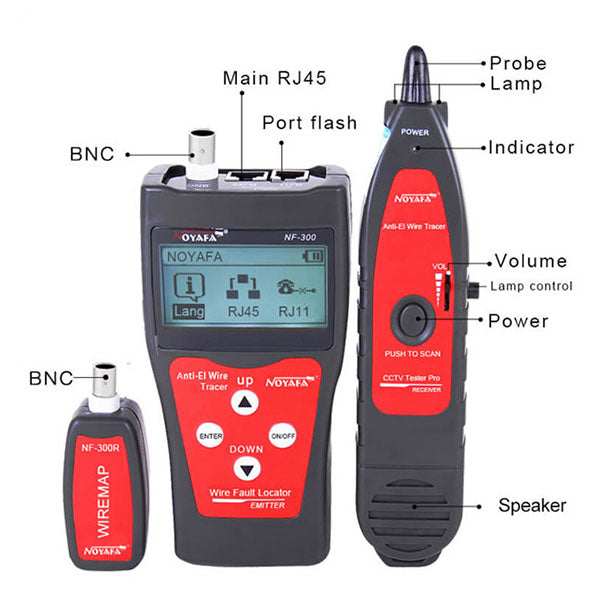

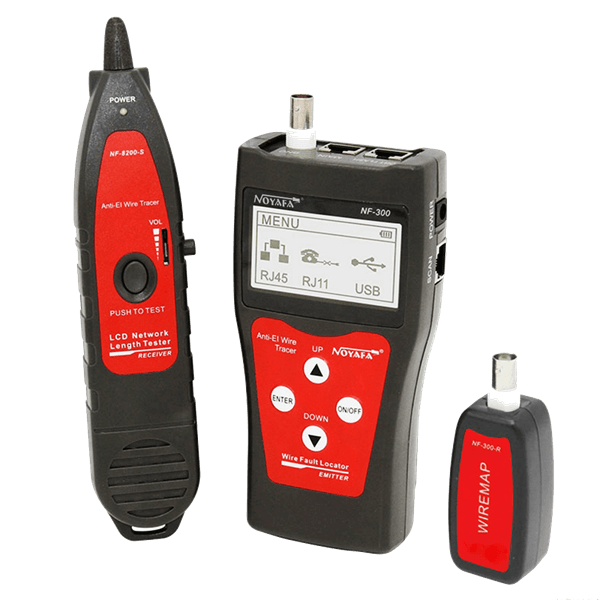

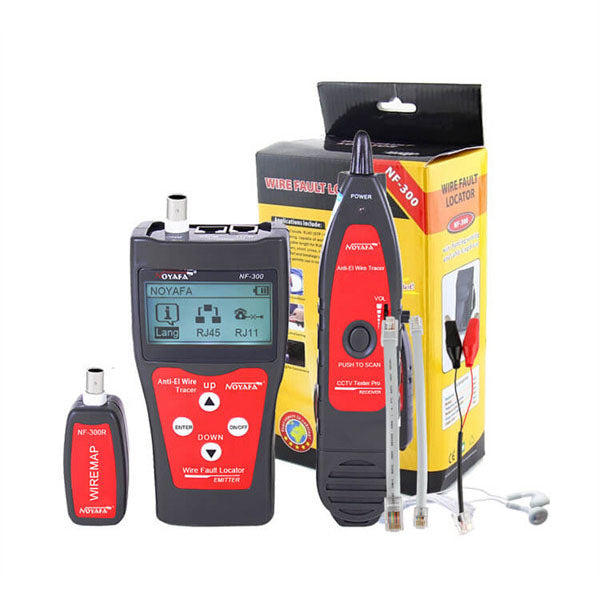

- What Is In The Box - Emitter *1, Receiver * 1, RJ11 cable adaptor *1, RJ45 cable adaptor *1, Remote Unit *1, Alligator clip * 1, Earphone *1, User Manual * 1
Quick Details
Quick Details
Model: NF-300
Tracing Cables: RJ45, RJ11, BNC, USB cable
Measure Cable Length: RJ45, BNC
Check Cable Error: RJ45, BNC
Max. Cable Length: 1,000m(3200ft)
Max. Distance of cablemapping: 2500m(8200ft)
Length Calibration: Yes
Anti-jamming: Yes

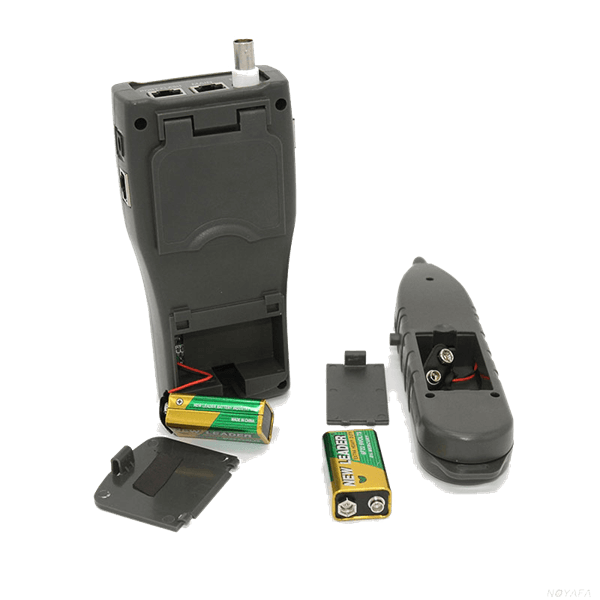

Power Supply: DC 9V
Display Screen: White-Black
Port Flash: Yes
Polarity Testing: NO
Remote Units: 1pc
Q&A
Q&A
1. Can I use NF-300 for ping test and POE test?

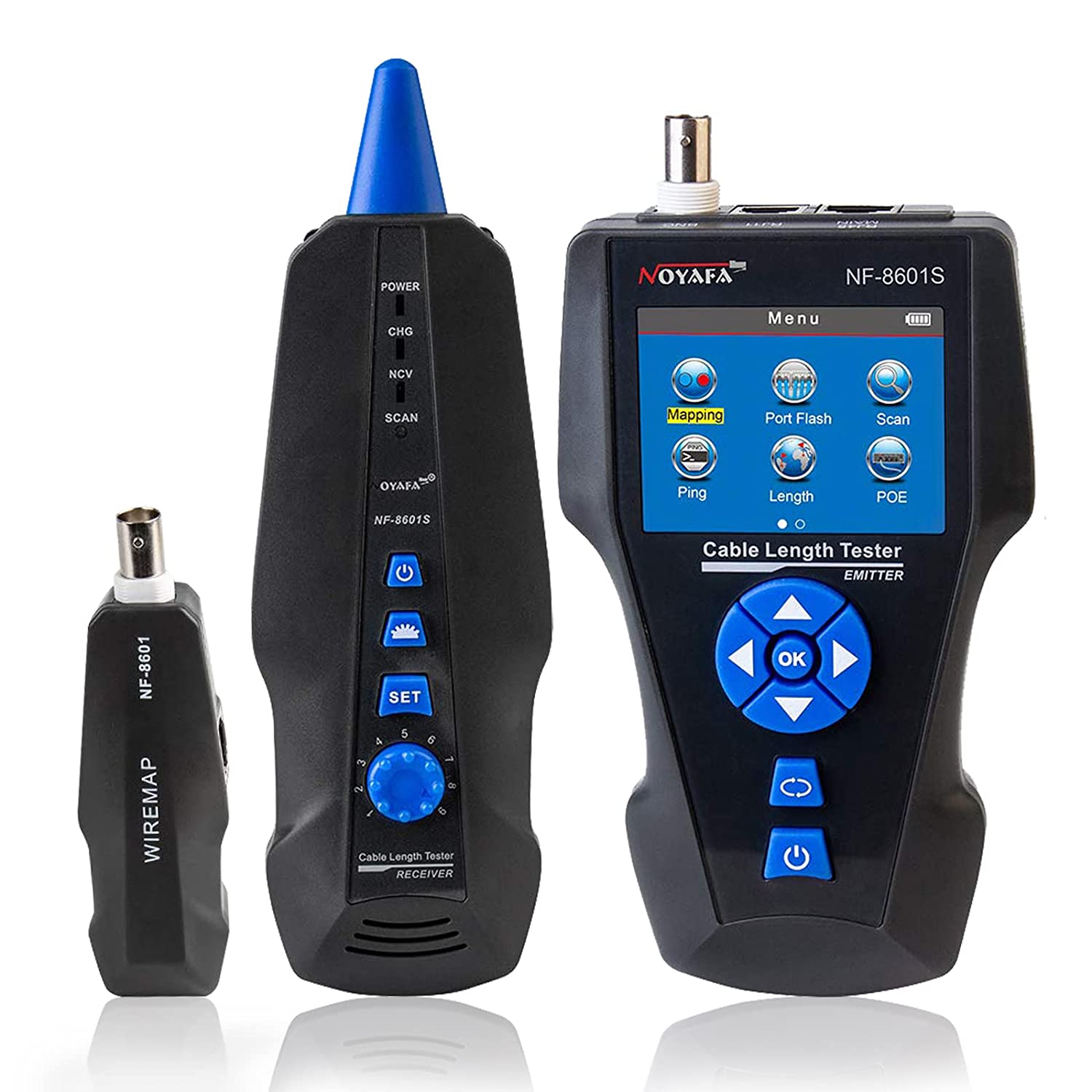

It does not have both functions, if you need these two functions, you can choose NF-8601, NF-8601S, NF-8601W
2. Does the NF-300 host have a low voltage prompt? How to prompt?
Yes, when the battery voltage is too low, a flashing battery symbol will appear on the screen
