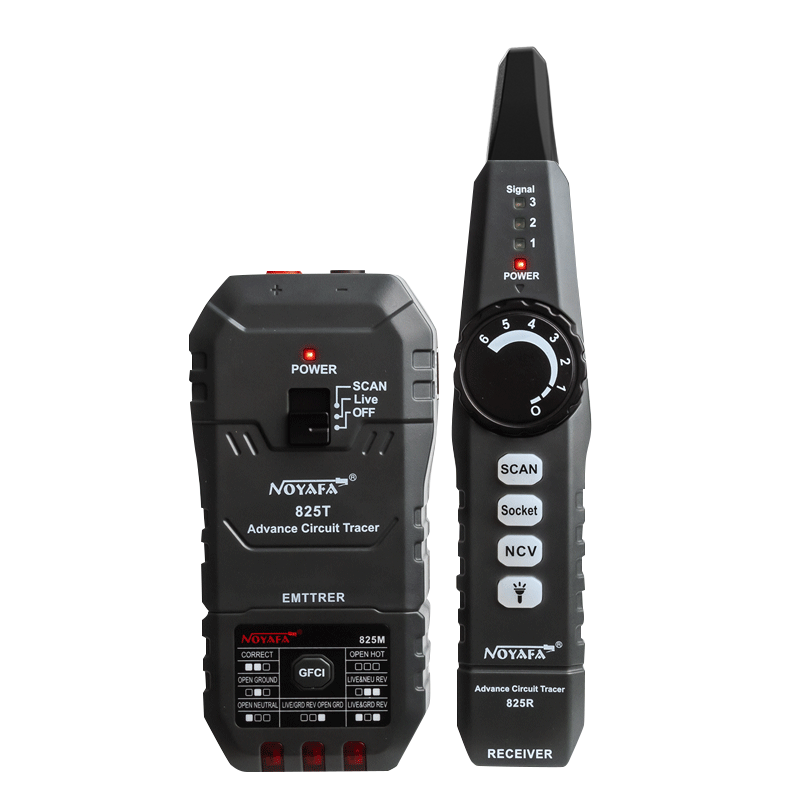

Noyafa New Arrival Electric Wire Detector Tracer with Circuit Breaker Finding, Socket Testing, Ethernet Cables Locating, and NCV Detecting - NF-825TMR
Noyafa New Arrival Electric Wire Detector Tracer with Circuit Breaker Finding, Socket Testing, Ethernet Cables Locating, and NCV Detecting - NF-825TMR
Couldn't load pickup availability
Fast, Free Shipping
Features & Benefits
-

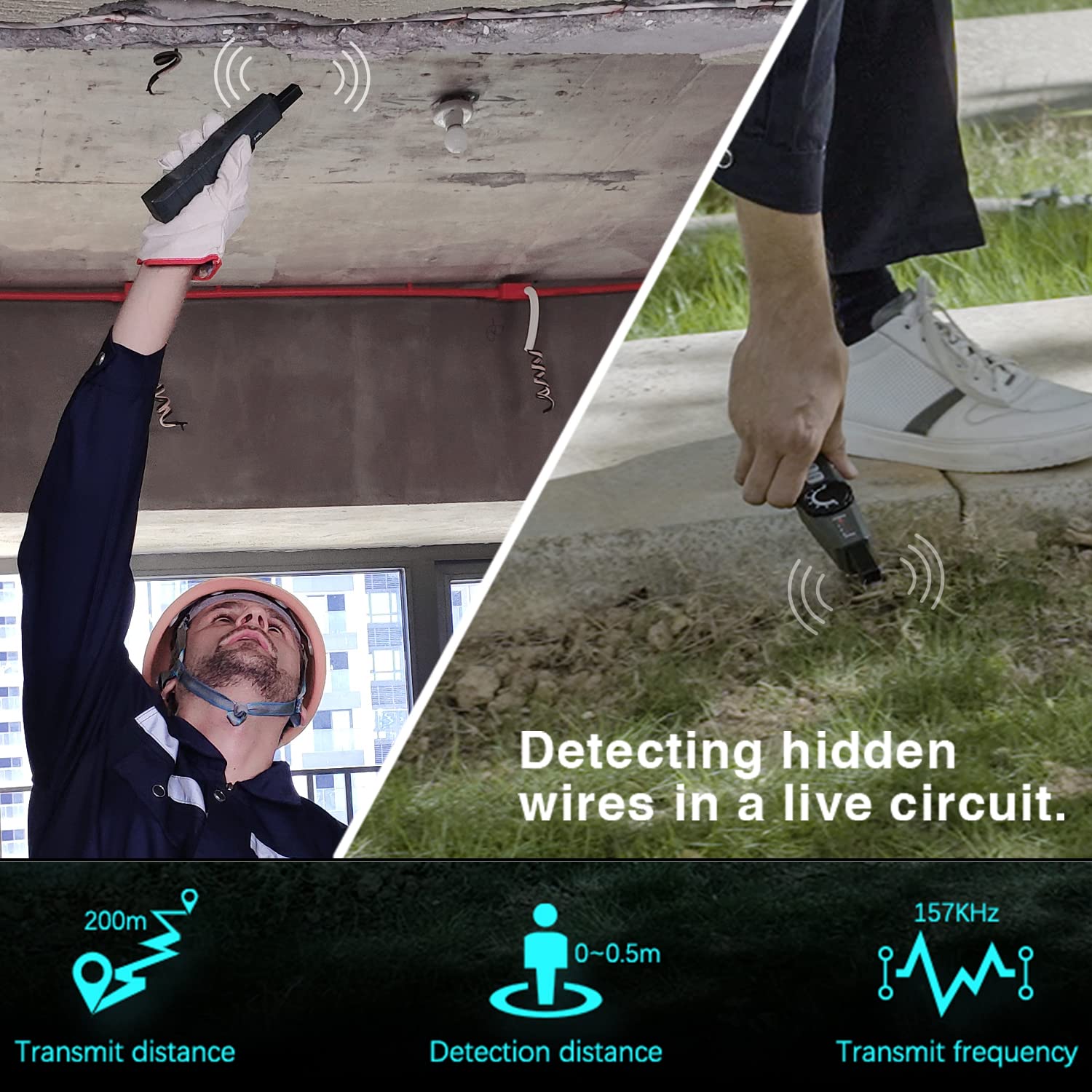

Detect & Trace Hidden AC Wires In Sec. The NF-825TMR electric wire detector will easily detect in-wall or underground AC wires/cables installed at a depth of 20 inches (0.5m), and give you a clear indication of where power cords are and/or in which direction they run.
-
Locate Faults in Cables. The NF-825TMR can find the location of interruptions and short circuits in cables and electrical lines.
-

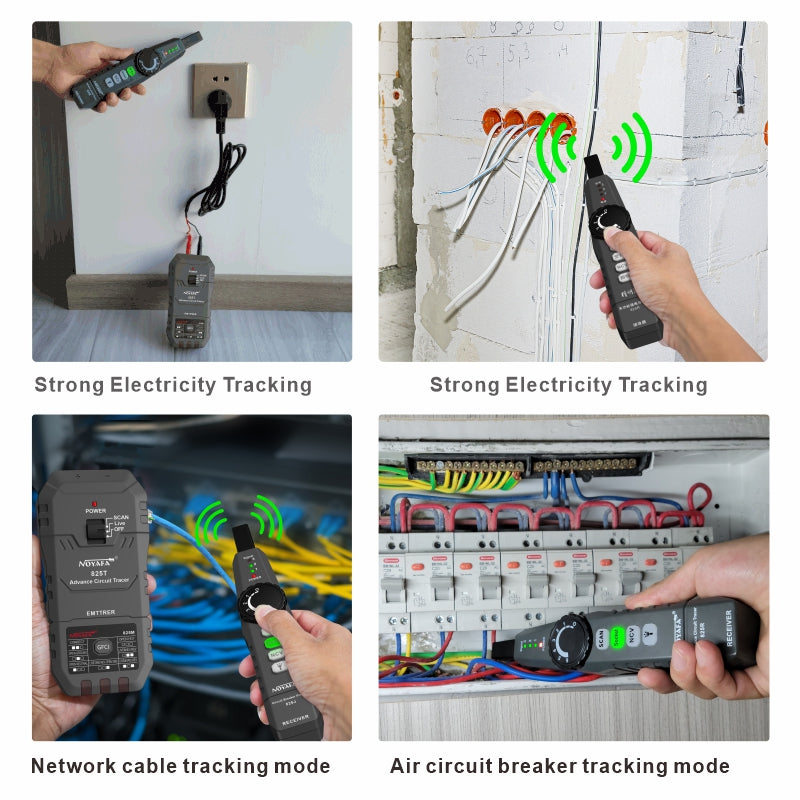

Locate Circuit Breakers. With NF-825TMR you can easily identify circuit breakers in electric circuits. All you need to do is to connect transmitter 2 to a power outlet in the particular circuit and the receiver will automatically locate the circuit breaker.
-
Socket Testing. The NF-825TMR can test the cable connection status inside a socket, and can also be used as a GFCI tester to detect the most common wiring problems in standard and GFCI receptacles.
-
Identify & Trace Network Cables. NF-825TMR makes ethernet cable search fast and effortless. You can locate and identify the direction of a network cable by plugging it into transmitter 1 and use the receiver for tracing.
-
NCV Induction Pen. NF-825TMR power pen detects whether any device or location has power. It is suitable for non-contact detection of voltage and testing. For example, to detect whether the newly installed socket is powered on.
-
Adjustable Search Sensitivity. You can adjust sensitivity of electrical search to locate electric wires which are otherwise hard to find. If a wire is deep underground or inside a thick wall, you can set the search sensitivity on the receiver to six different levels. And you can adjust the sensitivity levels during the search to pinpoint its location.
-
Signal Display Lights. The circuit finder features 3 signal display lights to determine the strength of a signal from the transmitter. They can make your search faster and more precise.
-
LED Lights. With LED lighting on the receiver, even in low lighting, you can get the job done.

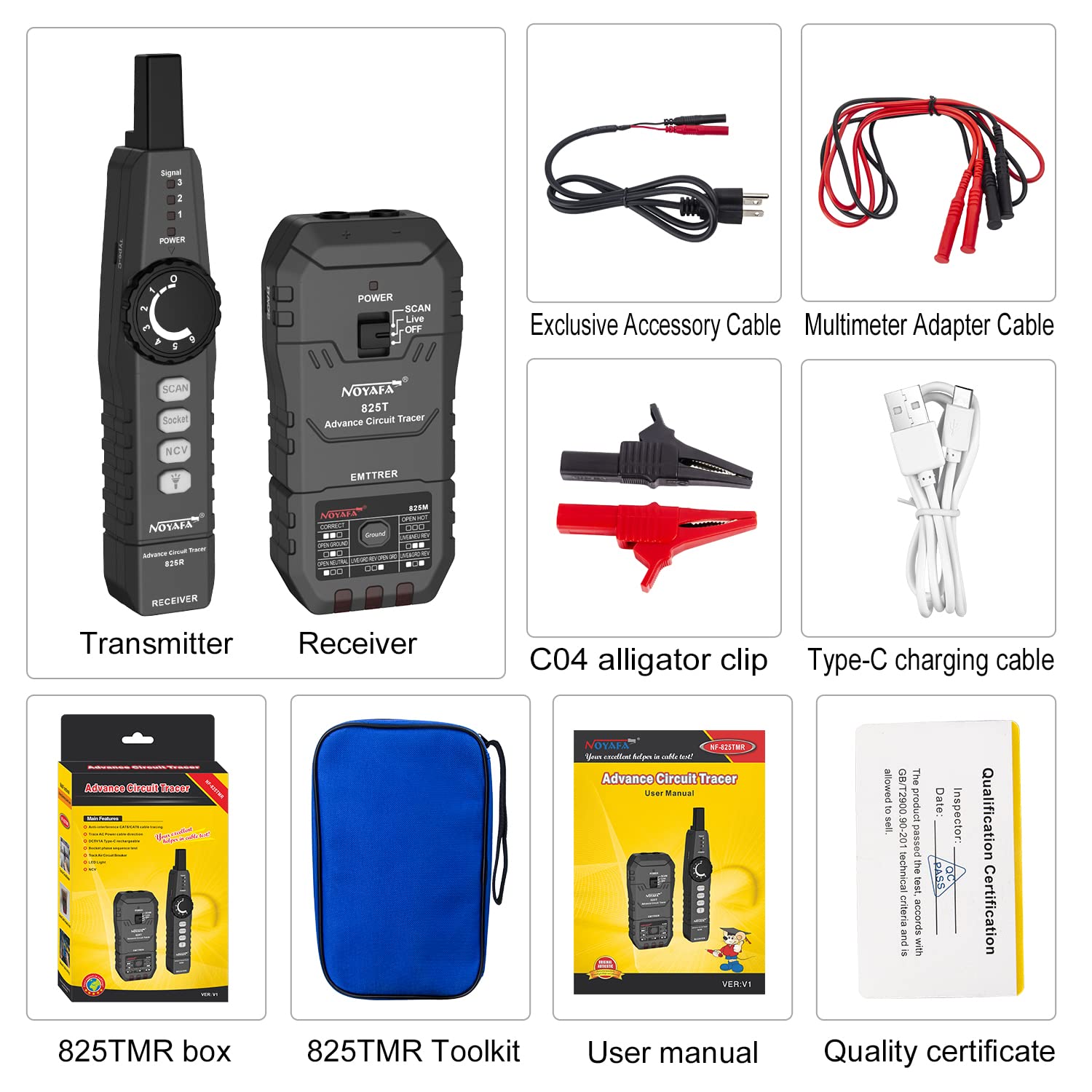

- What's in the Box -Trasmitter *1, Receiver *1, Exclusive accessory cable *1, Multimeter adapter cable *1, C04 alligator clip *1, USB-C cable *1, User manual *1, Toolkit *1
Quick Details
Quick Details
Model: NF-825TMR
AC Seek Test
Cable Voltage: AC 90V ~ 120V
The Interface Type: Crocodile clip
Emission Frequency: 157KHz
Launch Distance: 200m
Detection Distance: 0~0.5m
Network Cable Hunting Test
Network Cable Type: CAT5/CAT6
Network Cable Interface: RJ45
Emission Frequency: 455 KHz
Launch Distance: 600m
Circuit Breaker Lookup Test
Detection Distance: 2~3cm
Socket Wire Sequencing Test
Test Voltage: AC90V~120V 50/60Hz
NCV Tester: AC90V~1000V 50/60Hz
LED Lighting: Yes
Power Supply Mode: 7.4V 700mA lithium battery
Charging Method: DC 5V 1A Type-C
Operating Temperature: 32~122°F(0~50°C)
Storage Temperature: 14~122°F(-10~50°C)
Operating Humidity: ≤90%non-condensing
Transmitter Size: 72*34*148 mm
Receiver Size: 40*34*205 mm
Q&A
Q&A
Q: Is it normal for the transmitter to detect a slight current sound when the ear is close to the strong current function?
A: It is normal, this is the sound emitted when the transformer is boosted, and it does not affect itsstandard function.
Q: How is the transmitter wired?
A: The transmitter can use the three plugs and crocodile clip wires in the accessories, depending on the situation. The three plugs are connected to the red end transmitter marked with "+" at the end andthe black end transmitter marked with "-". The plug is inserted into the jack of the socket. The crocodile clip is also a red oneend launcher with “+" end, a black onelauncher has the "-" end, and the clip then clamps the zero and earth lines.
Q: How can the receiver find a strong current?
A: The receiver probe moves along the general direction of the wall or buried line and when the signal is received, it will emit a sound. The stronger the signal, the louder is the sound which helps to determine the approximate position of the cable after setting the sensitivity adjustment knob.

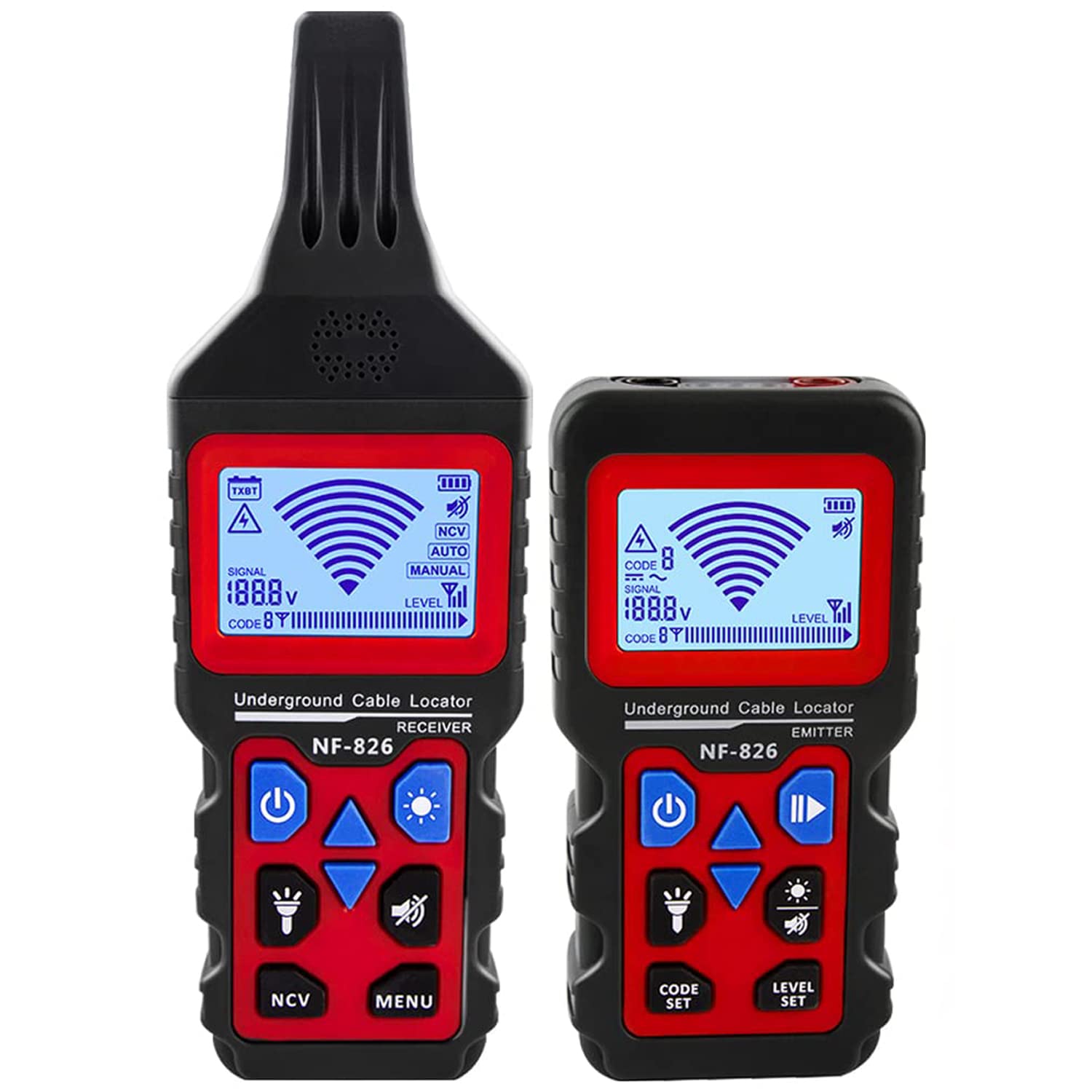

The Different Between the NF-825TMR and NF-826
| Function comparision(Wire Tracer) | |||
| Model | NF-825TMR | NF-826 | |
| AC Seek Test | Cable Voltage | AC 90V ~ 120V | 12-400V DC/AC |
| Emission Frequency | 157KHz | 125kHz | |
| Launch Distance | 200m | 200m | |
| Detection Distance | up to 0.5m | up to 2.5m | |
| Network Cable Hunting Test | Network Cable Type | CAT5/CAT6 | Null |
| Network Cable Interface | RJ45 | Null | |
| Emission Frequency | 455 KHz | Null | |
| Launch Distance | 600m | Null | |
| Circuit Breaker Lookup Test | Detection Distance | 2~3cm | Null |
| Socket Wire Sequencing Test | Test Voltage | AC90V~120V 50/60Hz | Null |
| Power Supply Mode | 7.4V 700mA lithium battery | 3.7V 1400 mAh Lithium battary | |
| Charging Method | DC 5V 1A Type-C | DC 5V Micro USB | |
| Operating Temperature | 32~122°F(0~50°C) | 32~104°F(0~40°C) | |
| Storage Temperature | 14~122°F(-10~50°C) | 68~140°F(-20~60°C) | |
| Operating Humidity | ≤90%non-condensing | ≤80%non-condensing | |
Customer Reviews
The brand has always had excellence in all its tools. Easy to use
I have to say, this is a great product. It's very easy to use and has saved me many trips back and forth to the breaker box.
As expected, everything went smoothly. The plug-insert storage method was particularly appealing to me.
I'm very happy with my purchase. This tool is incredibly easy to use and has helped me save a lot of time when it comes to finding circuit breakers.
My Electric Wire Detector Tracer was delivered quickly and with excellent service. With this product, I am able to quickly and accurately detect electric wires at work. Made my work much easier and more efficient. Thanks
Meet Noyafa's New Arrival - NF825
NF-825 helps people accurately find the position and direction of the cables and electrical lines buried inside a wall or underground. Also, it can find the location of interruptions and short circuit in cables and electrical lines. NF-825 is suitable for a variety of tasks from installing outdoor wiring layout or house decoration wire layout to home appliance maintenance, wire maintenance, and more.
Detect Hidden AC Wires In Sec
NF-825 combines essential tools for wiring and maintenance. Plugged into a power supply, the transmitter will give you a clear indication of where power cords are inside a wall and/or in which direction they run.
Locate Faults in Cables
The NF-825 can find the location of interruptions and short circuits in cables and electrical lines.
Socket Test
You can test the cable connection status inside a socket by connecting transmitter 2 to a power outlet. GFCI Tester detects the most common wiring problems in standard and GFCI receptacles.

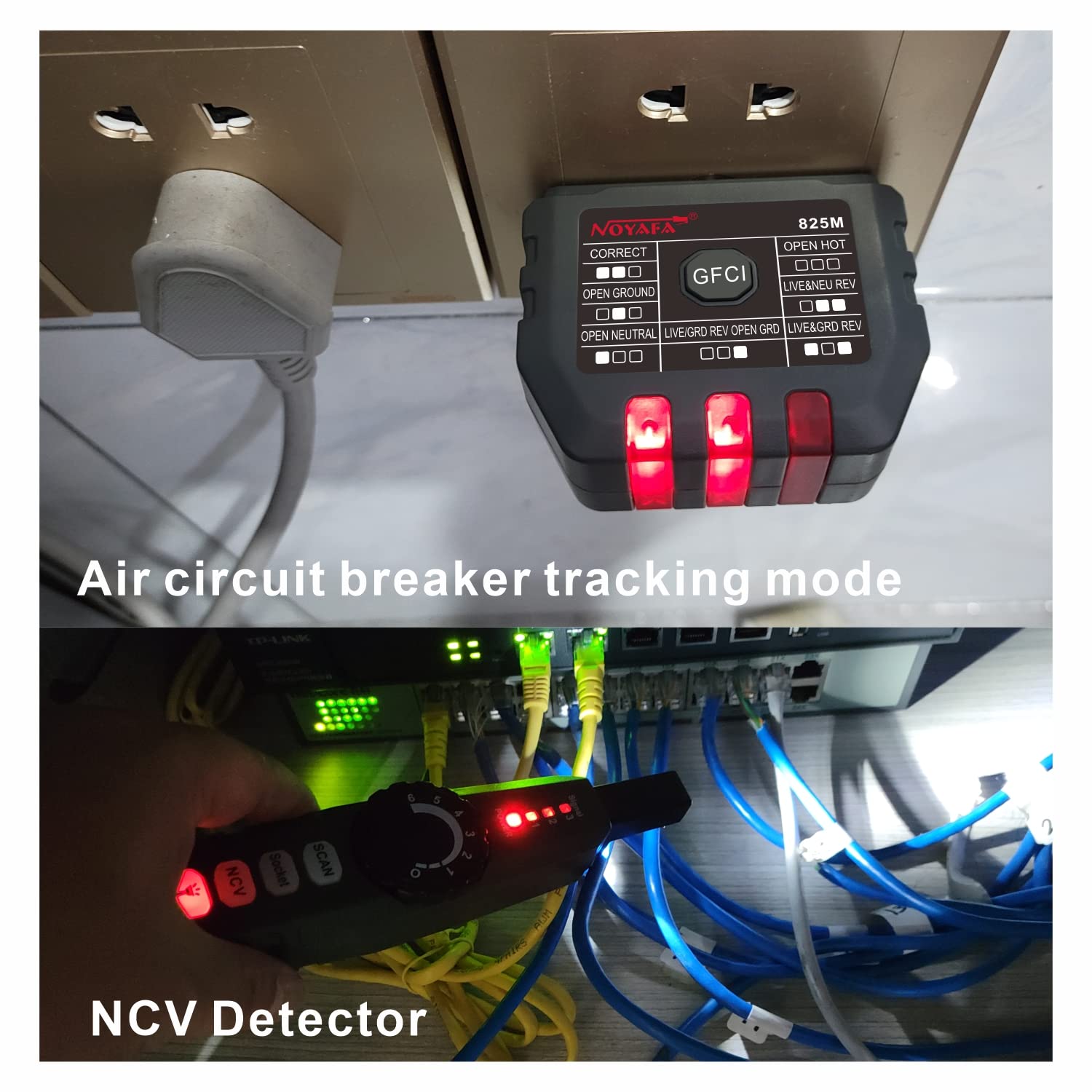

Digital Circuit Breaker Positioning
With NF-825 you can easily identify circuit breakers in electric circuits. All you need to do is to connect transmitter 2 to a power outlet in the particular circuit and the receiver will automatically locate the circuit breaker.

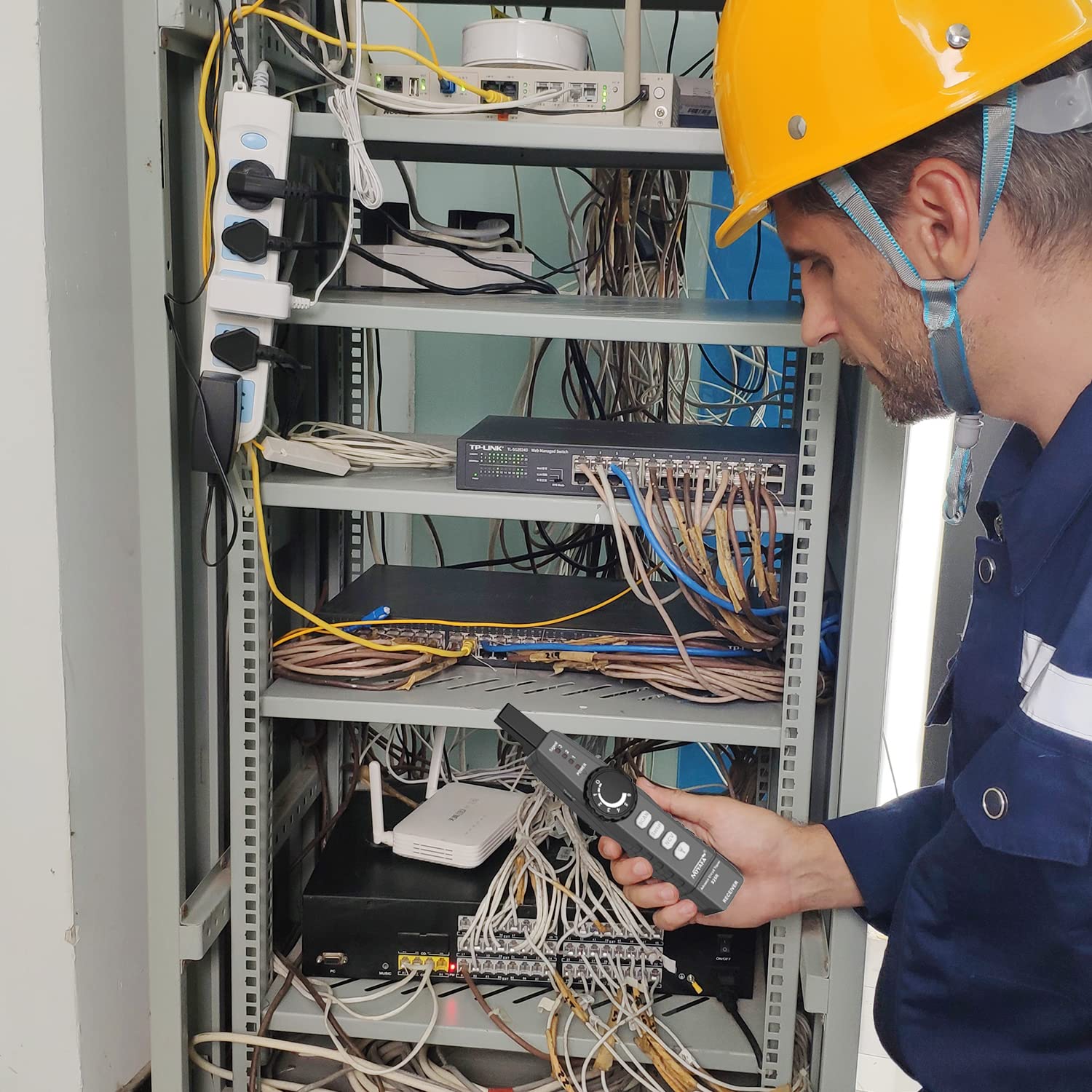

Identify & Trace Network Cables
NF-825 makes network cable search fast and effortless. You can locate and identify the direction of a RJ45 ethernet cable by plugging it into transmitter 1 and use the receiver for tracing.
NCV Induction Pen
NF-825 power pen detects whether any device or location has power. It is suitable for non-contact detection of voltage and testing. For example, to detect whether the newly installed socket is powered on.
Adjustable Search Sensitivity
With NF-825 you can adjust sensitivity of electrical search to locate electric wires which are other wise hard to find. If a wire is deep underground or inside a thick wall, you can set the search sensitivity on the receiver to six different levels. And you can adjust the sensitivity levels during the search to pinpoint its location.
LED Lights
To ensure good visibility in in low-light areas NF-825 receiver is illuminated with LED lights. They use low power and can last long which reduces their impact on the environment.
