Noyafa Thermal Camera for Android Cellphone HD Resolution, 25hz, -15°C to 600°C, 6 Color Palette Effects NF-583s

Noyafa Thermal Camera for Android Cellphone HD Resolution, 25hz, -15°C to 600°C, 6 Color Palette Effects NF-583s

Regular price $215.00
Regular price $257.00 Sale price $215.00
Sale Sold out
Shipping calculated at checkout.

30-Days Money Back Guarantee        Fast, Free Shipping

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Features

A Powerful Android Thermal - With a USB-C port, you can turn your Android phone or tablet into a powerful thermal imaging device. It does not need to be charged and consumes little power.

Smooth Running - Fast 25 frames per second, 35-degree vision, allowing thermal imaging to capture large areas at once, locate heat sources quickly, and capture any memorable moment.

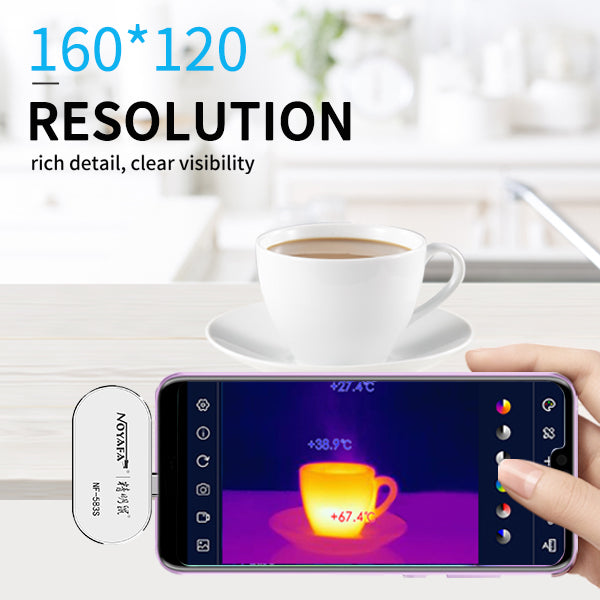

HD Resolution - The thermal heat camera has a resolution of 160*120, so you can see thermal thermography clearly even at a distance.

Sensitivity Range - From -15°C to 600°C(-5°F to 1112°F), with an accuracy of +-2%, meeting most needs.

Sharing Right Away - Take photographs and videos of the target, and apply six color palette effects to them before sharing them instantly from your phone.

Multi-measurements method - Automatically track high and low temperatures, point meters, area temperatures, line temperatures, and range checks.

Portable Design - You can use this thermal imager anywhere, anytime, because it fits in your pocket

What's in the box -?Mobile phone thermal imager *1, Dust Bag *1, Clear cloth *1, User manual

Quick Details

Model: NF-583s
IR Resolution: 160*120(click here choose highter resolution)
Response Wave Index: 8-14um
Frame Frequency: 25hz
NETD: <50mK@25°C
FOV: 35°27°
Focal Length Of Thermal Imaging Lens: 3.2mm
Temperature Measurement Range: -15°C~600°C
Temperature Measurement Range:+-2°C or +-2% of reading, the greater shall prevail
6 Color Palette: lron red, white hot, black hot, rainbow, red hot, cold blue
Photo Video: Supports taking photos, video and playback
Language: English and Chinese
Work Temperature: -10°C ~ 75°C
Storage Temperature: -45°C ~ 85°C
The Unit Switch: °C/°F/K

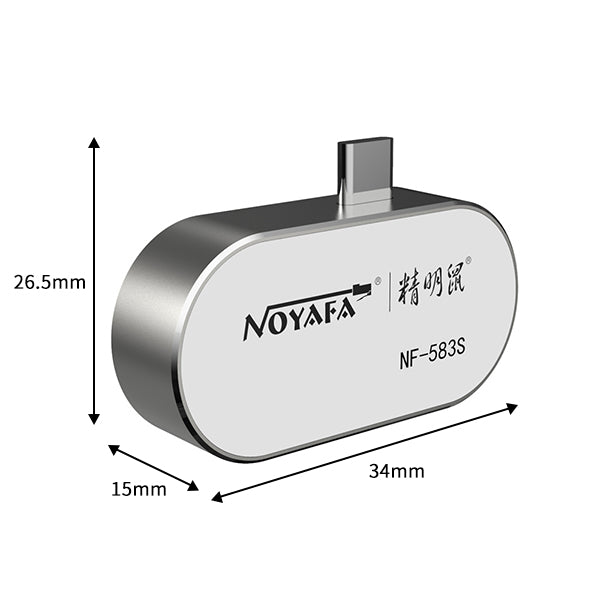

Size: 34mm x 26.5mm x 15mm
Net Weight: 19g

Q&A

View full details

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
L
LORENZO ANDREA ANGELO AGNOLETTO
So far, impressive for the cost

Haven't had a chance to use it for a specific purpose, but a test at home was quite impressive for such a relatively economic gadget.
With the app installed, it worked straight away.
Inside "room temperature" premises, the end part of the heating pipes inside the wall to the radiator glared brightly. Any object that had heat or any warm body contrasted very clearly to the background temperature.
So far impressed, but I've only just received it so I cannot yet say how much of a tool it is over a "toy".

C
C.
A Must-Have Tool for Temperature-Related Issues

It can be easily connected to any Android device via USB-C, making it very convenient to use. The camera is also easy to operate, and the software is intuitive and user-friendly. When it comes to performance, the Thermal Camera for Android consistently delivers accurate results. Thermal imaging is precise, and the camera can capture both pictures and videos, which is helpful for documenting and analyzing data.
