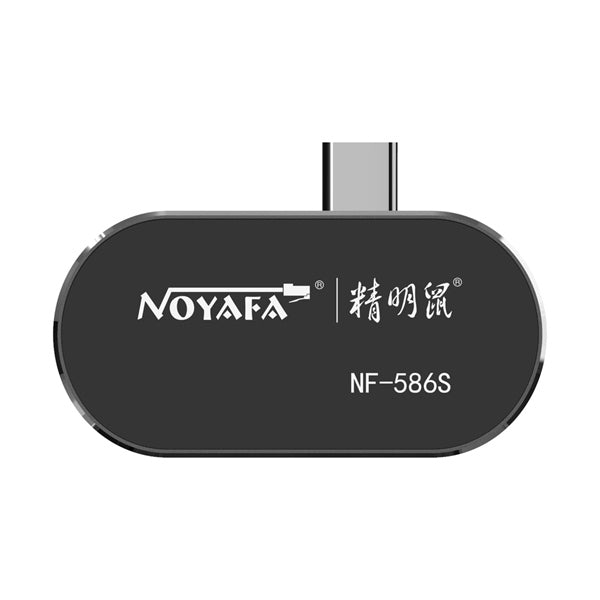

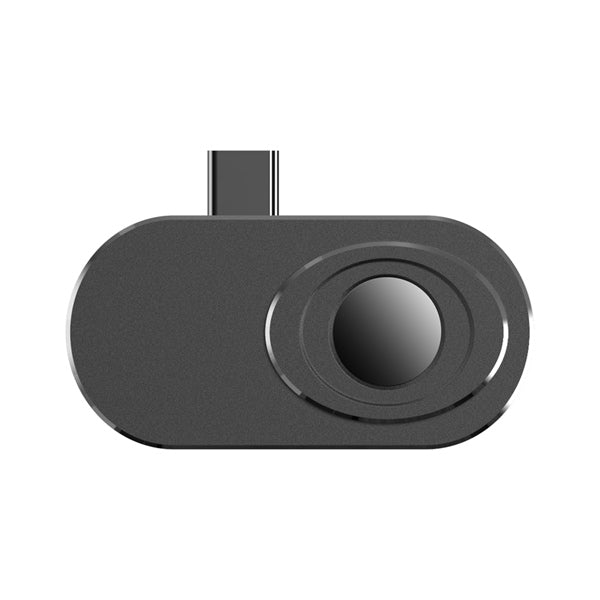

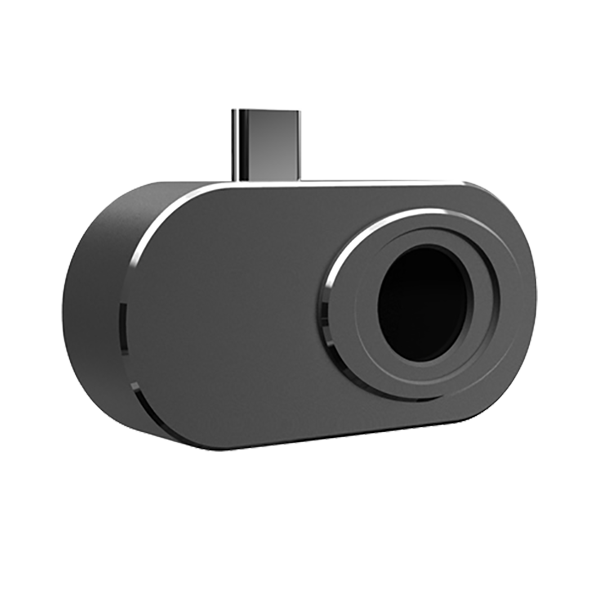

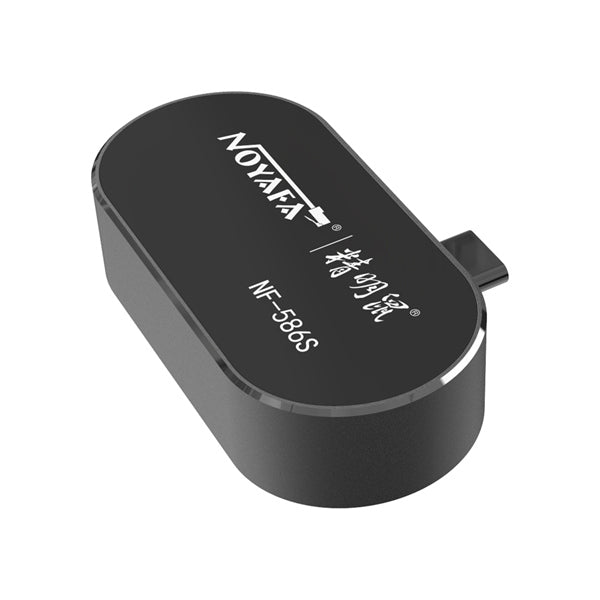

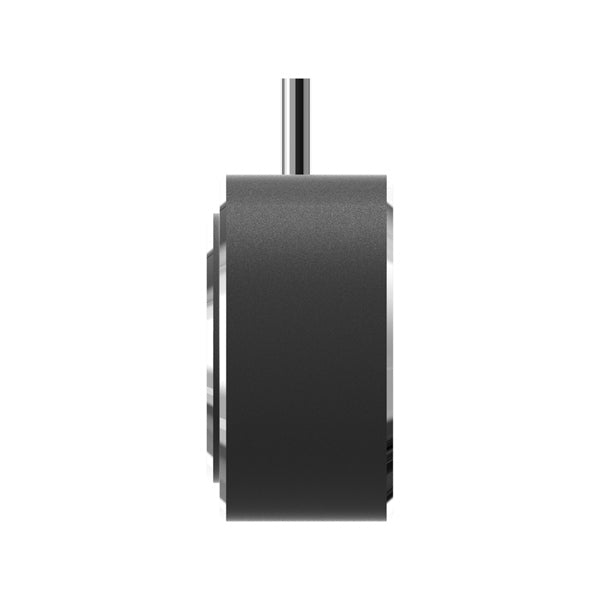

Noyafa Compact Thermal Imager Camera for Android Mobile 25hz, HD Resolution, -15 °C to 600 °C, 6 Color Palette Effects NF-586s
Noyafa Compact Thermal Imager Camera for Android Mobile 25hz, HD Resolution, -15 °C to 600 °C, 6 Color Palette Effects NF-586s
No reviews
Regular price
$272.50
Regular price
Sale price
$272.50
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Fast, Free Shipping
Features
A Powerful Android Thermal Camera- With a USB-C port, you can turn your Android phone or tablet into a powerful thermal imaging device. It does not need to be charged and consumes little power.Smooth Running - Fast 25 frames per second, 35-degree vision, allowing thermal imaging to capture large areas at once, locate heat sources quickly, and capture any memorable moment.

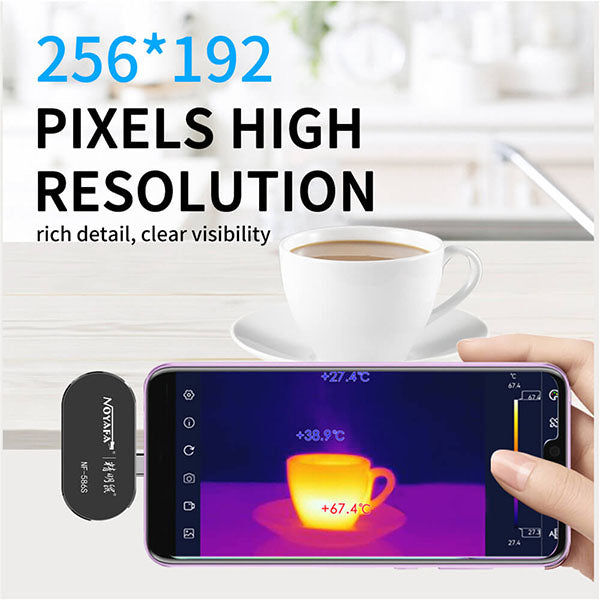

HD Resolution - The thermal camera has an HD resolution of 256*192, so you can see thermal thermography clearly even at a distance.
Sensitivity Range - From -15 °C to 600 °C (-5 °F to 1112 °F), with an accuracy of +-2%, meeting most needs.
Sharing Right Away - Take photographs and videos of the target, and apply six color palette effects to them before sharing them instantly from your phone.
Multi-measurements method - Automatically track high and low temperatures, point meters, area temperatures, line temperatures, and range checks.

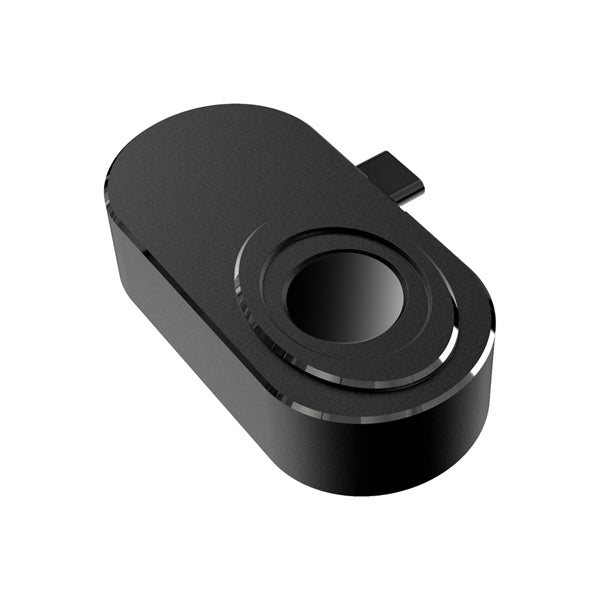

Compact Design - You can use this thermal imager anywhere, anytime, because it fits in your pocket
What's in the box - Mobile phone thermal imager *1, Dust Bag *1, Clear cloth *1, User manual
Quick Details
Quick Details

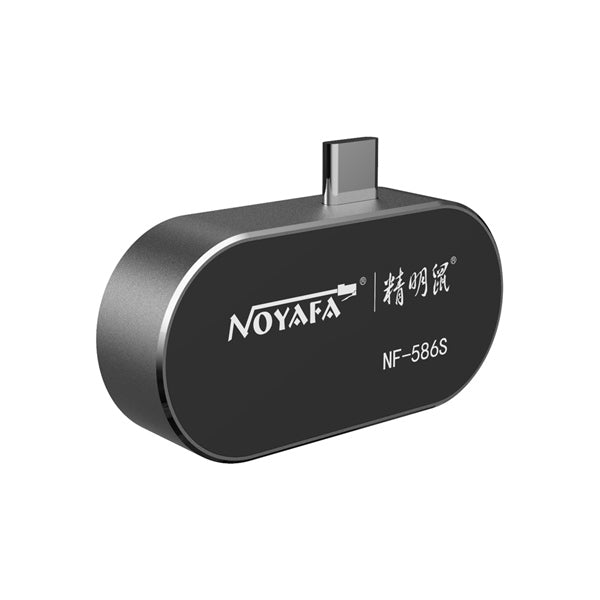

Model: NF-586s
IR Resolution: 256*192
Response Wave Index: 8-14um
Frame Frequency: 25hz
NETD: <50mK@25°C
FOV: 56°42°
Focal Length Of Thermal Imaging Lens: 3.2mm
Temperature Measurement Range: -15°C~600°C
Temperature Measurement Range:+-2°C or +-2% of reading, the greater shall prevail
6 Color Palette: lron red, white hot, black hot, rainbow, red hot, cold blue
Photo Video: Supports taking photos, video and playback
Language: English and Chinese
Work Temperature: -10°C ~ 75°C
Storage Temperature: -45°C ~ 85°C
The Unit Switch: °C/°F/K

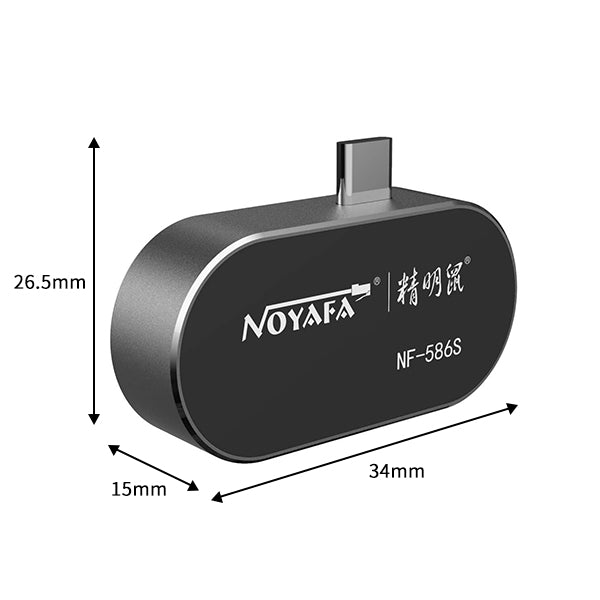

Size: 34mm x 26.5mm x 15mm
Net Weight: 19g
