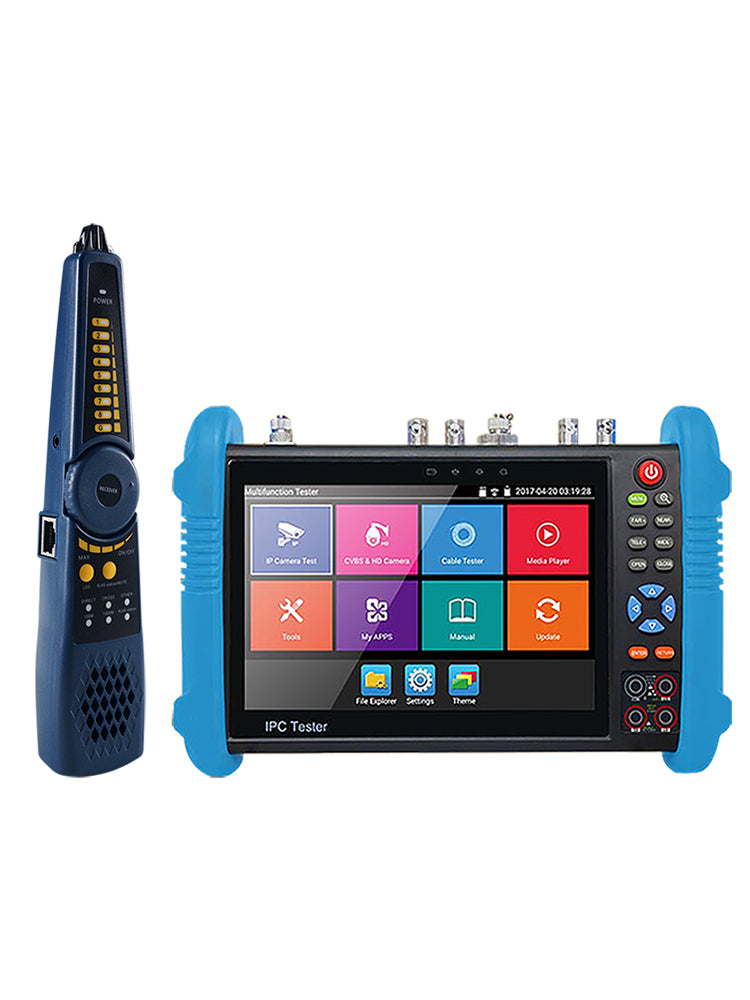

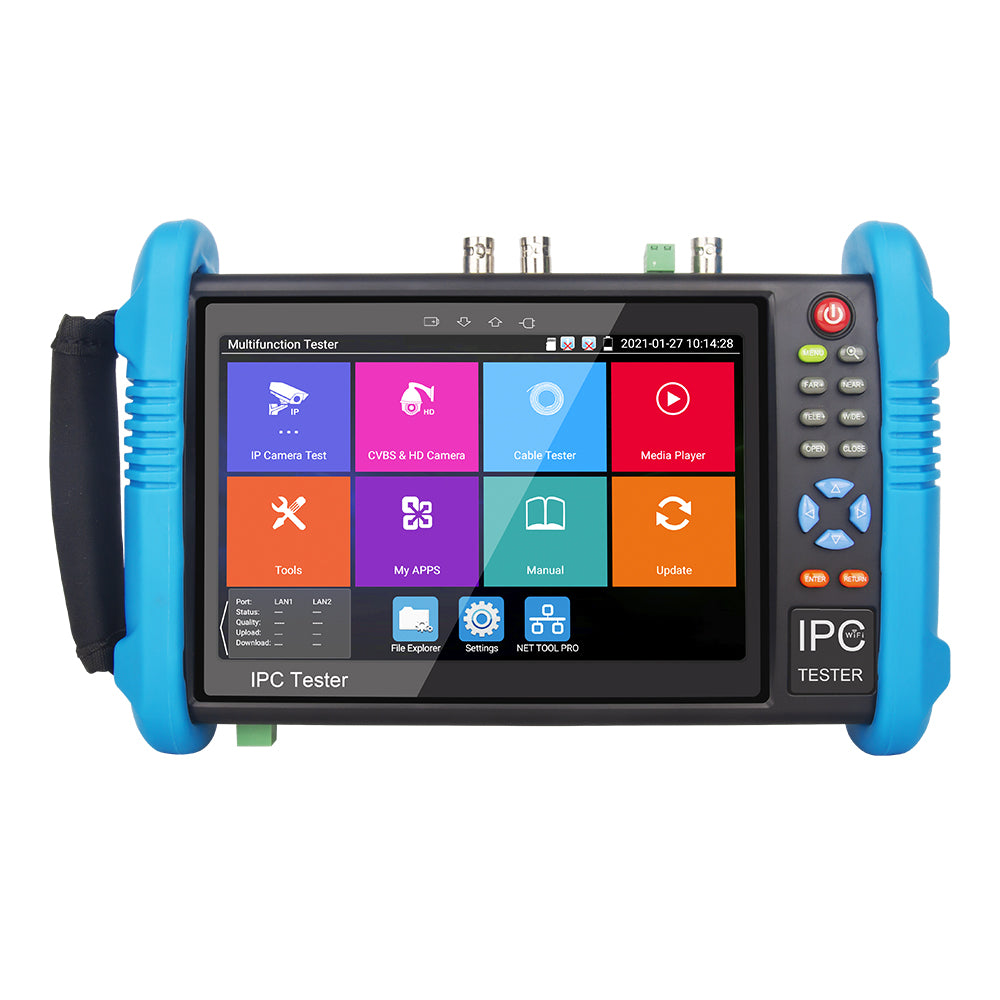

Noyafa NF-716 All-in-one IP Camera Tester with RJ45 TDR/PoE/7-inch Screen/WIFI/4K/Dual Test Window

Noyafa NF-716 All-in-one IP Camera Tester with RJ45 TDR/PoE/7-inch Screen/WIFI/4K/Dual Test Window

2 total reviews

Regular price $339.00
Regular price Sale price $339.00
Sale Sold out

30-Days Money Back Guarantee        Fast, Free Shipping

Features

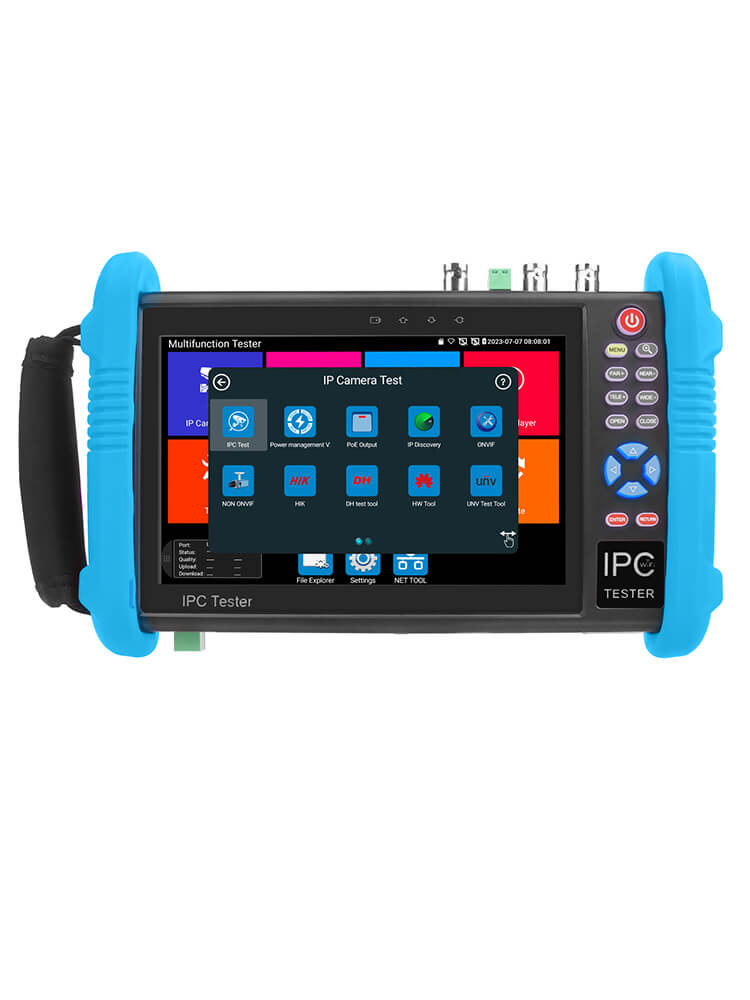

  • Network tool - This IPC tester has Ping - IP scan, Port Flash, DHCP server, and Trace Route.

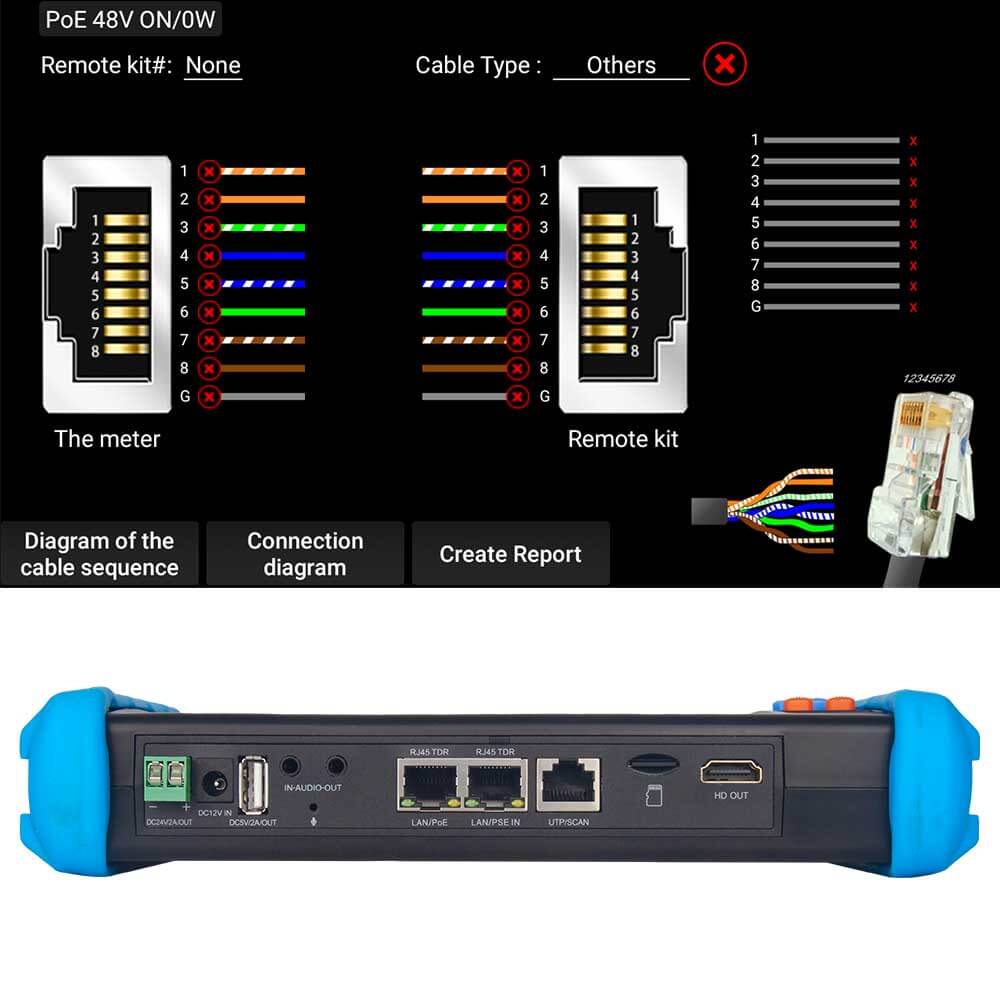

  • TDR tester - UTP cable tester/RJ45 cable TDR test, cable quality test

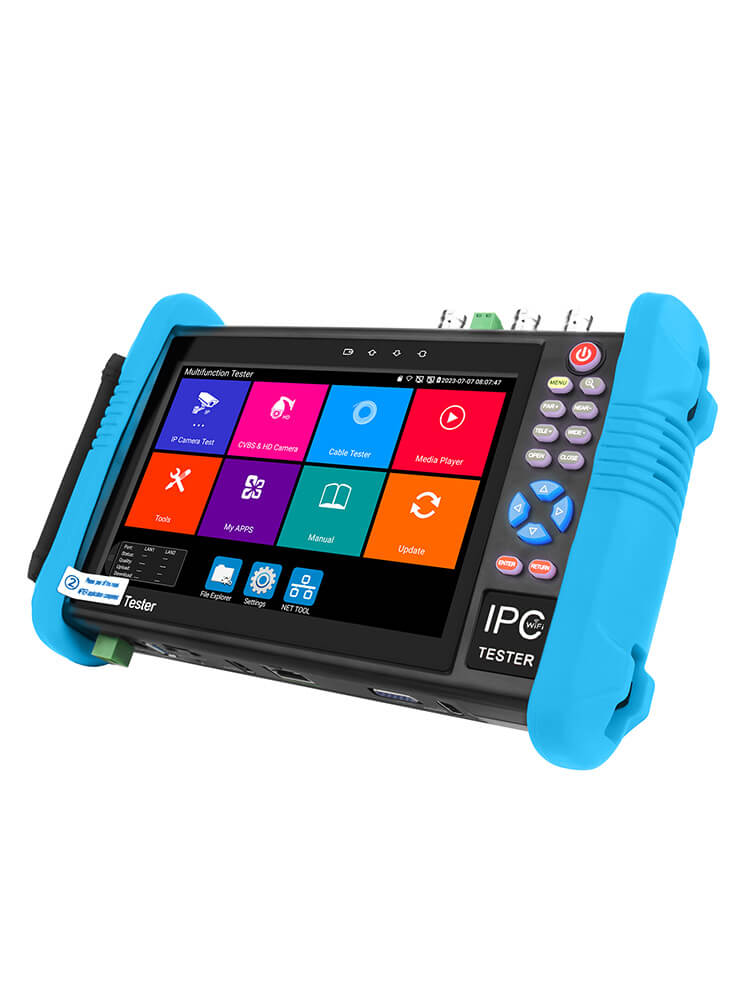

  • Large touch screen - 7-inch Retina touch screen, 1920*1200 resolution

  • TesterPlay - Tester, mobile phone, PC display at the same time

  • POE & power output - DC12V 3A, DC48V PoE power output, max power 25.5W

  • More camera brands supported - Dahua, Hikvision, Axis, etc ONVIF camera test

  • Built-in WIFI - Easy to update firmware via wireless

  • Powerful decoding capability - H.265/H.264, 4K video display via mainstream.
    HDMI input & output, support 1080p

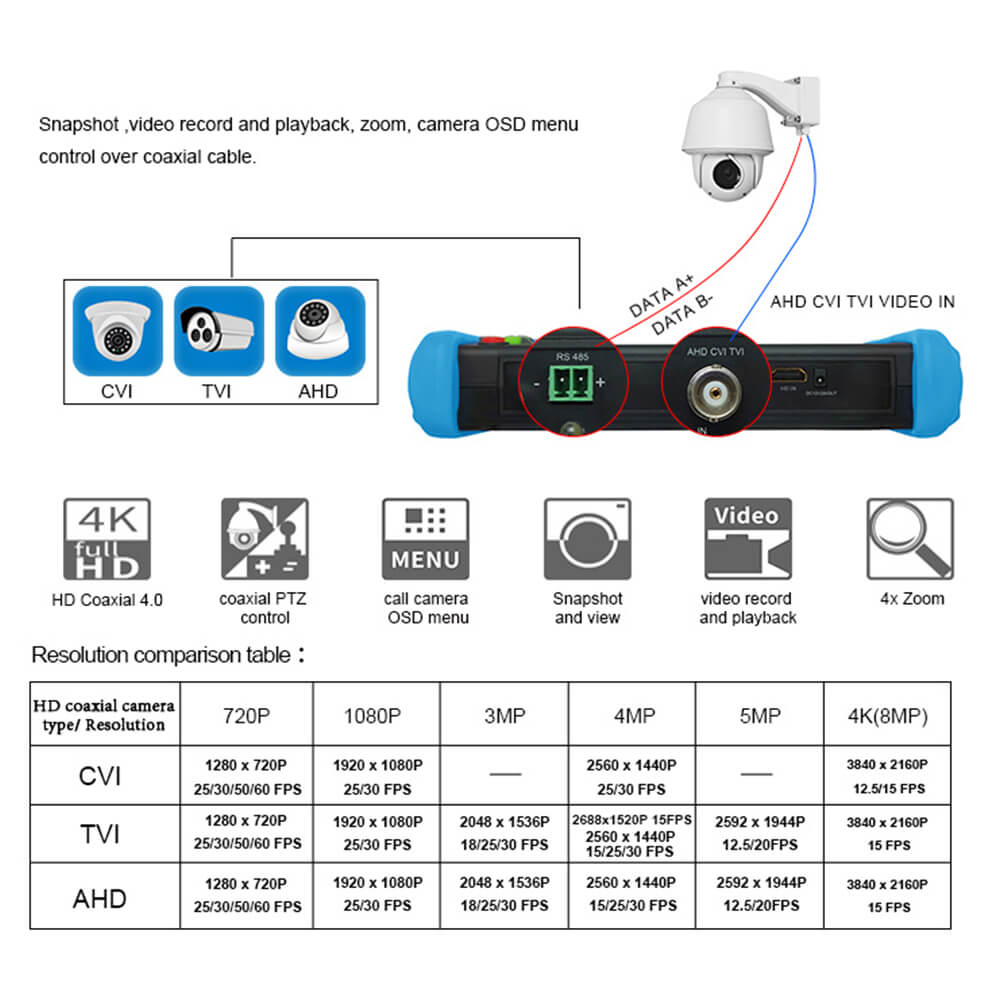

  • 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*

  • Rapid ONVIF, auto view video, and create testing report

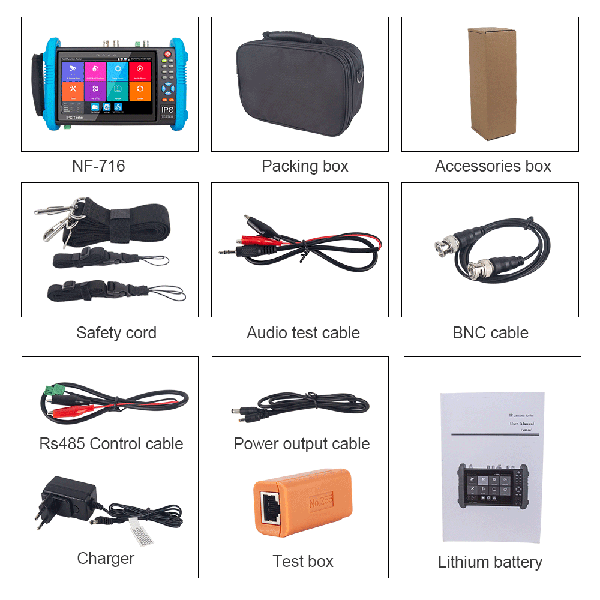

  • What’s In The Box - CCTV tester *1, BNC cable *1, Audio test cable *1, Safety cord *1, Lithium Battery *1, Test box *1, Power output cable *1, RS485 control cable *1, Charger *1, Packing box *1, User manual *1

Quick Details

Model: NF-716
IP Camera Test(4K/H.265/H.264): Yes
IP&CVBS Test: Yes
NTSC/PAL: Auto adapt
PTZ control, RS485 control, Baud 600-115200bps
UTP Cable Test: Yes
RJ45 Cable TDR Test: Yes
Network Test: Yes
Data Monitor: Yes
PoE Test: Yes
TesterPlay: Yes
CVBS Loop Test: Yes
Coaxial HD Test: Yes
HDMI Input: Yes
Display: 7-inch touch screen
Zoom Image: Yes
Analog Video Out: Yes
Wi-Fi: Yes
Audio test: Yes
Power Output: 48V PoE power output, max power 24W
DC12V Power: DC12V 3A power output
External Power supply : DC 12V 2A
Charging Time: 5-6 hours
Working Time: 16 hours
Power Supply: Built-in 7.6V Lithium polymer battery, 7800mAh
