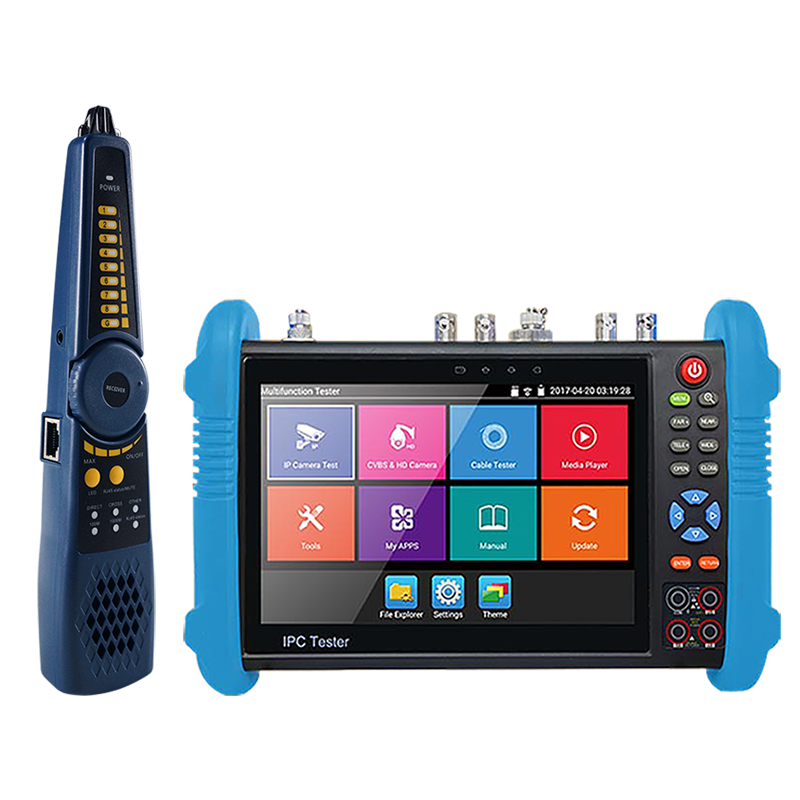

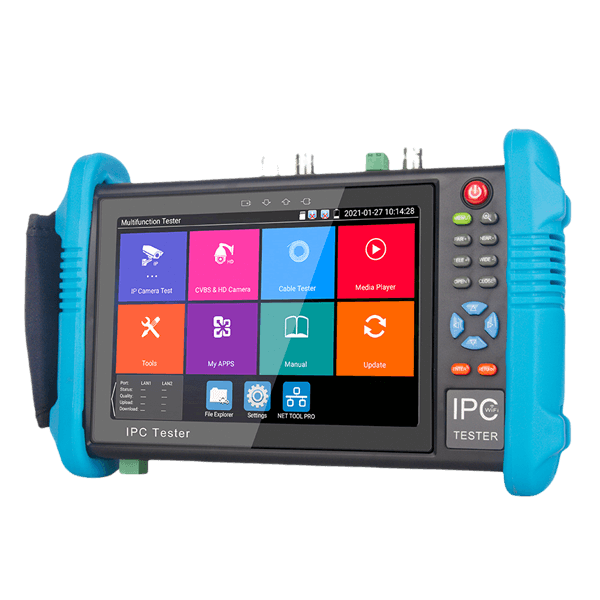

Noyafa All in One IP CCTV Tester Monitor with 7 inch Touch Screen 4K H.265 IPC-716 MOVTADHS Plus
Noyafa All in One IP CCTV Tester Monitor with 7 inch Touch Screen 4K H.265 IPC-716 MOVTADHS Plus
Regular price
$560.00
Regular price
Sale price
$560.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Fast, Free Shipping
Features
- 7-inch IPS touch screen, 1280*800 resolution.
- H.265/H.264, 4K video display via mainstream
- Dual window test, IP & Analog camera test
- Built-in WIFI, create WIFI hotspot

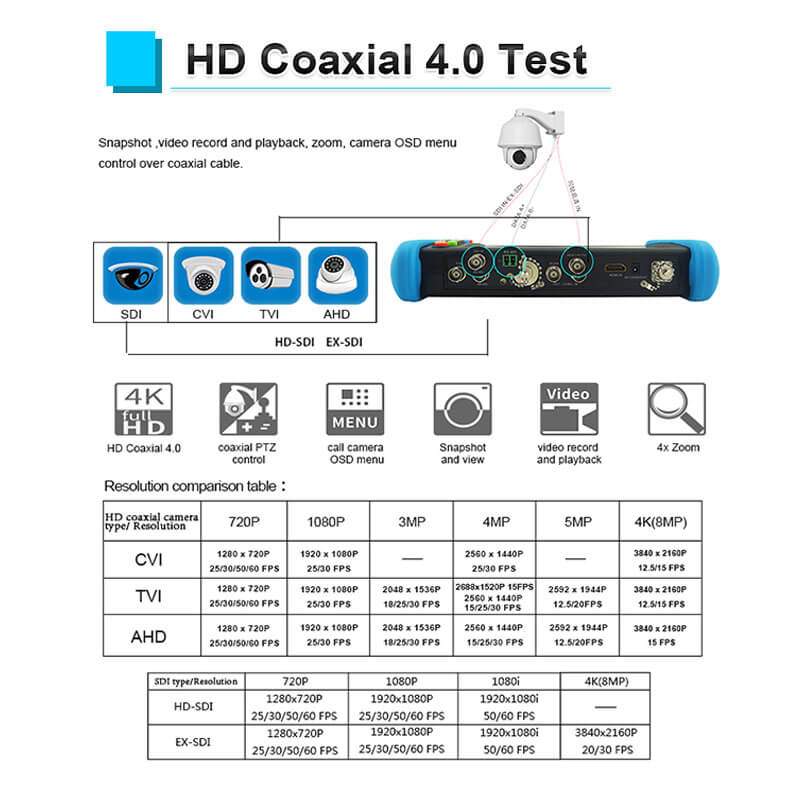

- AHD(A)/CVI(D)/TVI(H)/SDI(S) image display, support the coaxial visual control calls to set up the camera menu. Support HDMI input
- Digital Multimeter (M)/Optical power meter (O)/Visual fault locator (V)/TDR cable test (T). support Cable tracer(C),Video level meter(L)

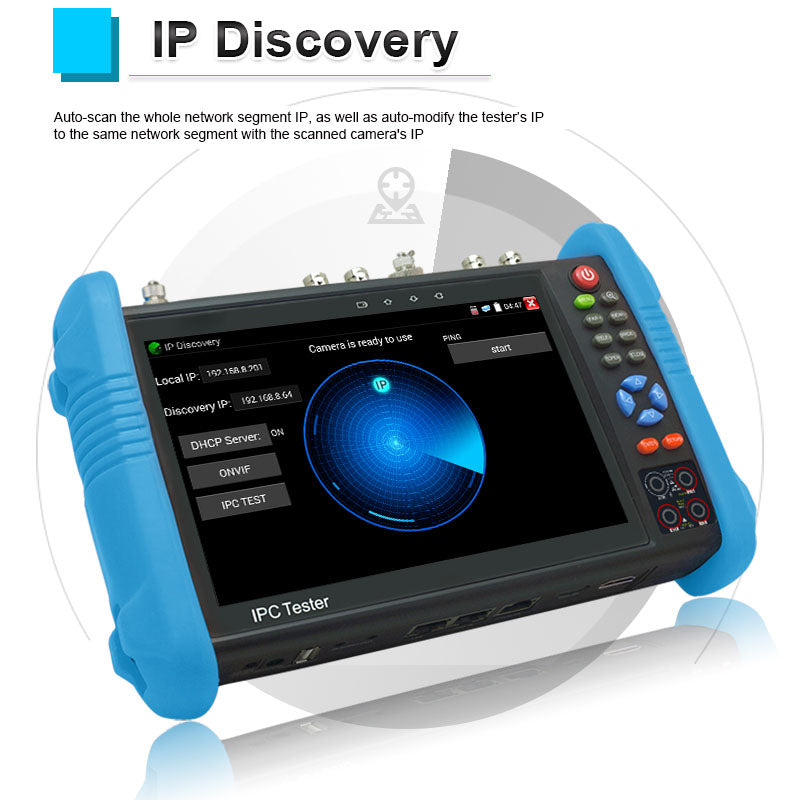

- IP discovery, shortcut button, drop-down menu
- DC12V 3A, DC24V 2A, DC48V PoE power output
- Rapid ONVIF, auto view video and create testing report
- Quick office(excel ,word ,PPT format ) doc.

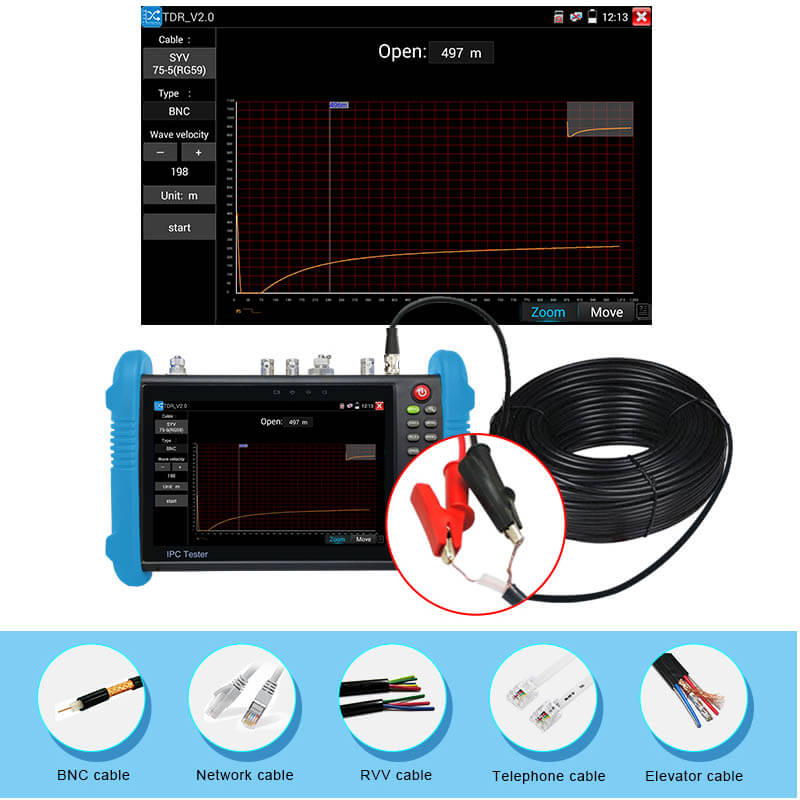

- RJ45 cable TDR test, cable quality test
- UTP cable tester
- TesterPlay - Tester, android mobile phone, and PC display at the same time.

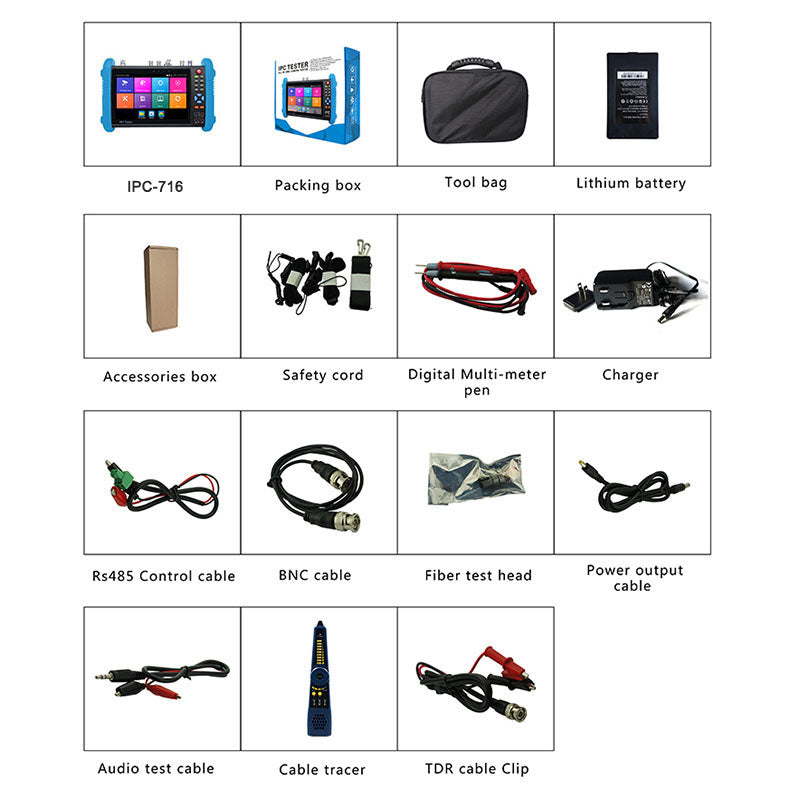

- What's in the Box -? IPC-716 *1, Tool bag *1, Lithium battery *1, Safety cord *1, Ditital multi-meter pen *1, Charger *1, RS485 control cable *1, BNC cable *1, Fiber test head *1, Power output cable *1, Audio test cable *1, Cable tracer *1, TDR cable clip
Quick Details
Quick Details
Model: IPC-716 MOVTADHS PLUS
Add AHD(A)/CVI(D)/TVI(H)/SDI(S) image display.
Support the coaxial visual control calls to set up the camera menu. Support HDMI input.
Add Digital Multimeter (M)/Optical power meter (O)/Visual fault locator (V)/TDR cable test (T).
Support Cable tracer(C),Video level meter(L)
Q&A
Q&A
The Different Between the NF-715, NF-716ADHS, 716MOVT Plus CCTV Tester
| Function comparision (CCTV Tester ) | ||||||
| Description | NF-IPC715 | NF-IPC716ADHS | IPC-716MOVT Plus | |||
| Price | $228.34 | $287.86 | $560 | |||
| Display | New 5 inch IPS touch screen, 1920x1080 resolution | New 7 inch Retina touch screen, 1920*1200 resolution | Enhanced version of NF-IPC716ADHS with added functions: Digital Multimeter (M), Optical Power Meter (O), Visual Fault Locator (V), TDR Cable Test (T). Also supports Cable Tracer (C) and Video Level Meter (L). | |||
| CVBS | 1 channel BNC input, NTSC/PAL (Auto adapt) | 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) | ||||
| PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc | Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement. PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P,Samsung, Panasonic etc CVBS loop test : The tester can send and receive color bar generator signal to check BNC cable |
|||||
| IP camera test 4K/H.265/H.264 |
IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK | IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK | ||||
| Rapid Video | Auto view the video, create testing report | Auto view the video, create testing report | ||||
| HIKVISION test tool | Support batch activate HIKVISION cameras and modify IP address, modify | Activate hikvision camera, modify the user name, password and IP parameters | ||||
| password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. | ||||||
| DAHUA test tool | Support batch activate DAHUA cameras and modify IP address, username and password. Self-defined modify channel name. | modify the user name, password and IP parameters | ||||
| HD Coaxial test * | 8MP TVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/ call OSD menu | 8MP TVI camera test,3840 x 2160P 15 FPS, UTC control & call OSD menu | ||||
| 8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control / call OSD menu | 8MP CVI camera test,3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu | |||||
| 8MP AHD test, 3840 x 2160P 15FPS, UTC control / call OSD menu | 8MP AHD test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu | |||||
| Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record& playback, coaxial PTZ & call OSD menu | 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu | |||||

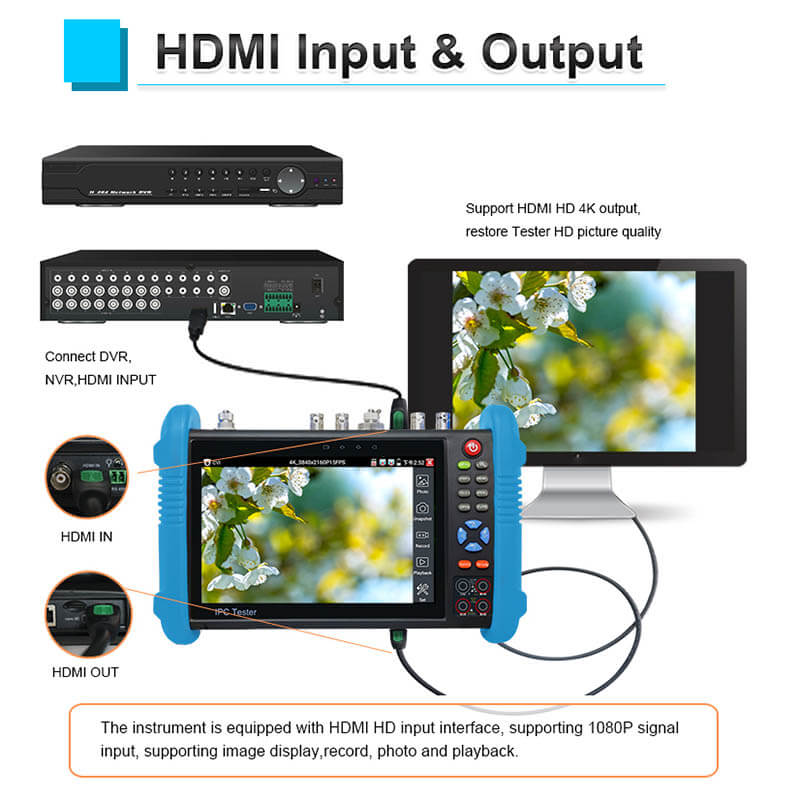

| HDMI input* | 1 channel HDMI input, support 4K 30FPS. The resolution as follow: 4K_3840 x 2160/2K_2560 x 1440P/ 1920×1080P /1920×1080i /720×480P /720×576P /1280×720P/1024×768P/1280×1024P /1280×900P /1440×900P, etc |
1 channel HDMI input, support 1080P.the resolution as follow:720x480P/60fps,720x576P/60fps,1280x720P/25/30/50/60fps，1920x1080P/25/30/50/60fps，1920x1080I/50/60fps，800x600P/60fps，1024x768P/60fps，1280x1024P/60fps | ||||
| VGA input* | 1 channel VGA input, support 2048 x 1152 60FPS. The resolution as follow: 2048 x 1152P/ 1920 x 1200P 60FPS/1920×1080P 60FPS /1792×1344P 60FPS /1680x 1050P 60FPS/(1600x1200P/900P 60FPS)/1440x900P 60FPS/1360x768P 60FPS/(1280x1024/960/800/768/720P 60FPS)/1152x870P 60FPS/1024x768P 60FPS/800x600P 60FPS/600x480P 60FPS. | |||||
| Zoom Image | 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back | 4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back | ||||
| 12V/3A power | Output DC12V/3A power out, supply temporarily power for the camera | DC12V 3A power output | ||||
| PoE power output | 48V PoE power output, max power 25.5W | 48V PoE power output, max power 24W | ||||
| UTP cable test | Test UTP cable connection status and display on the screen. Can detect the near-end, mid-end and far-end fault point of the network cable crystal head. | Test UTP cable connection status and display on the screen. Read the number on the screen | ||||

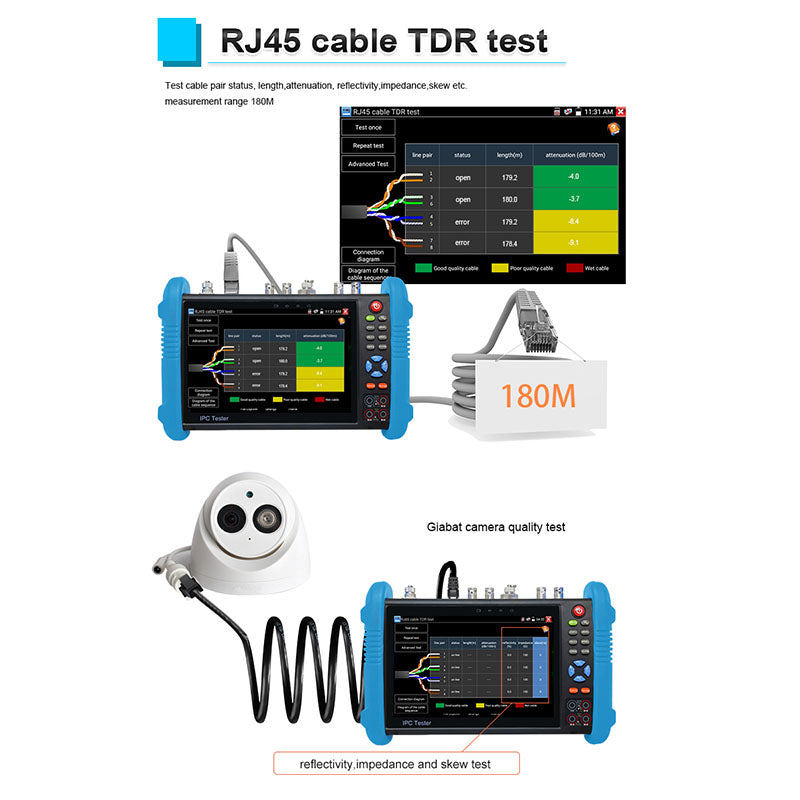

| RJ45 TDR cable test | Test cable pair status, length, attenuation, reflectivity, impedance, skew, can create test report. measurement range 180M. | Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M. | ||||
| Screen projection: Tester, mobile phone and PC display at the same time (For android version mobile phone) | Tester, mobile phone and PC display at the same time (For android version mobile phone) | |||||
| Trace route, Link monitor, DHCP server, port flashing, Ping test | Trace route, Link monitor, DHCP server, port flashing, Ping test | |||||
| Built in WIFI, speeds 150M, display wireless camera image | Built in WIFI, speeds 150M, display wireless camera image | |||||
| 1 channel audio signal input, test whether sound normal. | 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone | |||||
| Display DC 12V input & output voltage and power in real time | Captures and analyzes the command data from controlling device, also can send hexadecimal | |||||
| Captures and analyzes the command data from controlling device, also can send hexadecimal | Measurement PoE switch or PSE power supply voltage and cable connection status | |||||
| DC 12V 1A | DC 12V 2A | |||||
| Built-in Lithium ion battery | Built-in 7.6V Lithium polymer battery, 7800mAh | |||||
| After charging 3-4 hours, normal working time 5 hours | After charging 5~6 hours, normal working time 16 hours | |||||
| OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Deutsch, Turkish Portuguese, Czech etc | OSD menu, select your desired language: English, Portuguese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, Turkish etc | |||||
| 1-30 (mins) | 1-30 (mins) | |||||
| “-10℃-+50℃” | "-10℃---+50℃" | |||||
| 30%-90% | 30%-90% | |||||
| 183mm x 110mm x 36.5mm / 0.8kg | 240mm x 154mm x 46mm / 2KG | |||||
