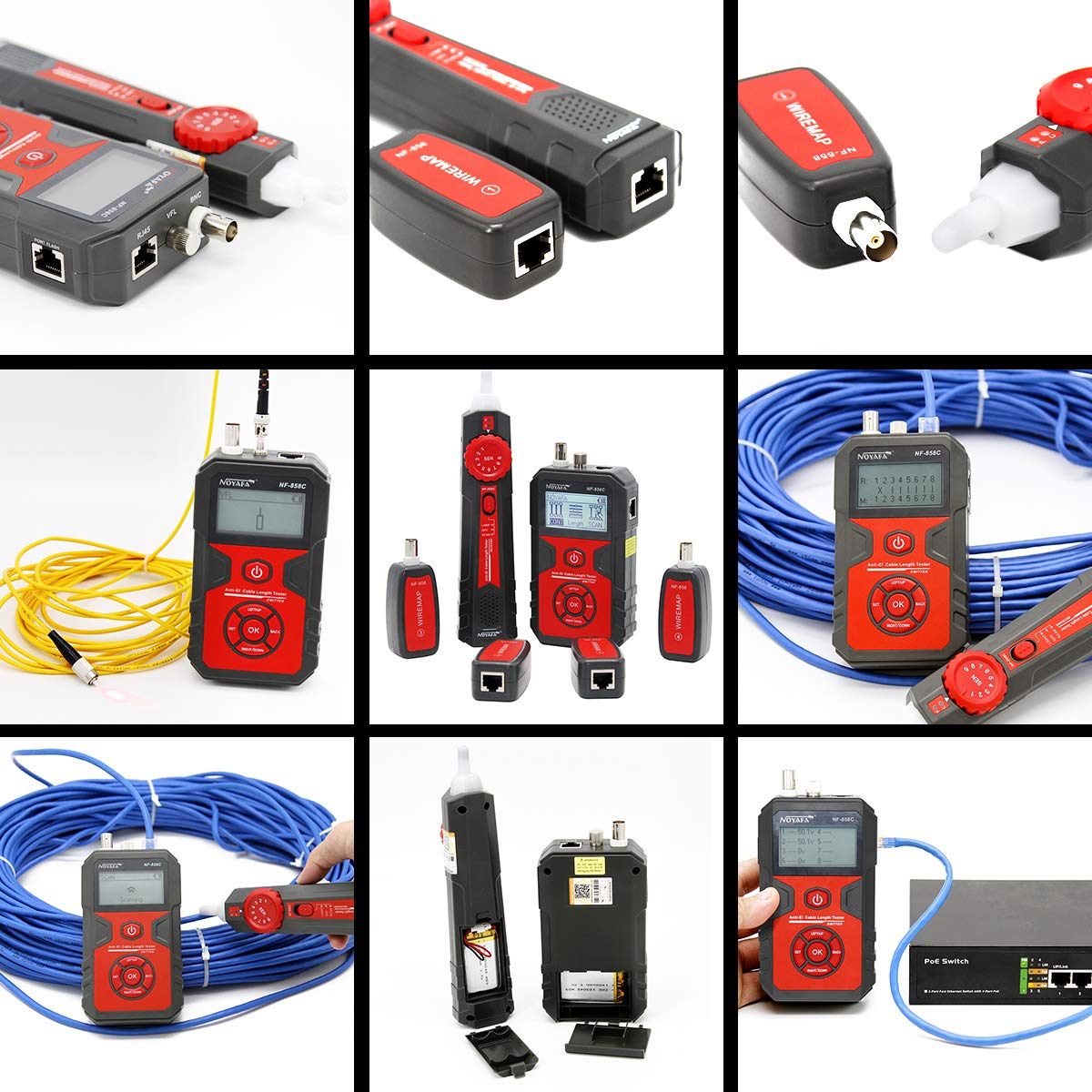

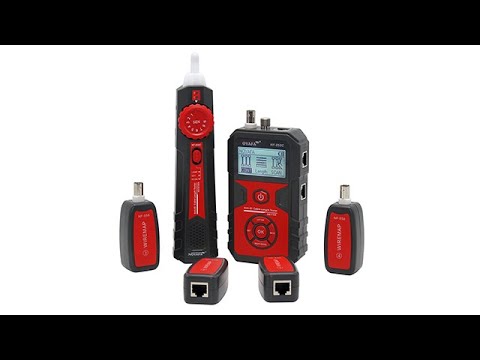

VFL 및 전화 상태 확인 기능이 있는 Noyafa NF-858C 케이블 추적기 및 테스터
VFL 및 전화 상태 확인 기능이 있는 Noyafa NF-858C 케이블 추적기 및 테스터
픽업 사용 가능 여부를 로드할 수 없습니다.
Fast, Free Shipping
특징

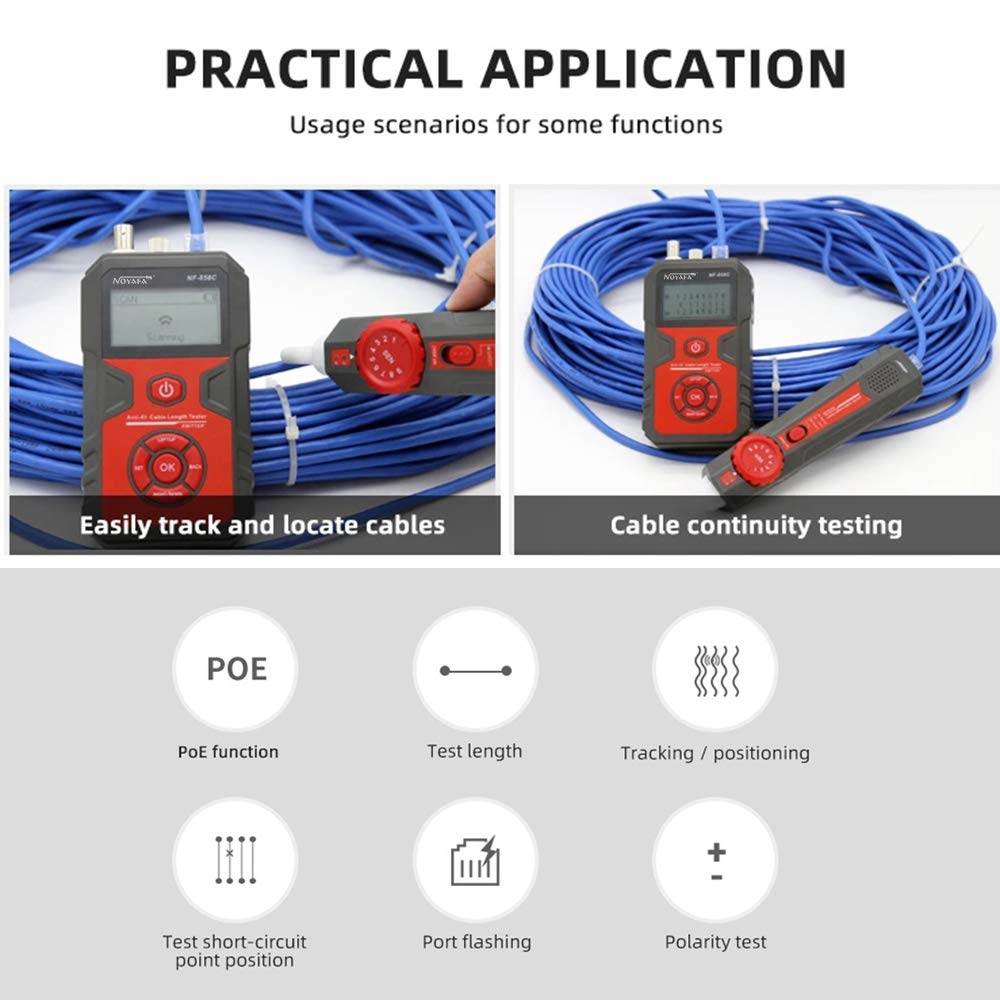

- CAT5, CAT6 및 동축 케이블 연속성 테스트.
- CAT5, CAT6 및 동축 케이블 길이를 최대 2,000미터까지 측정합니다.
- 추적 네트워크 케이블 및 동축 케이블.

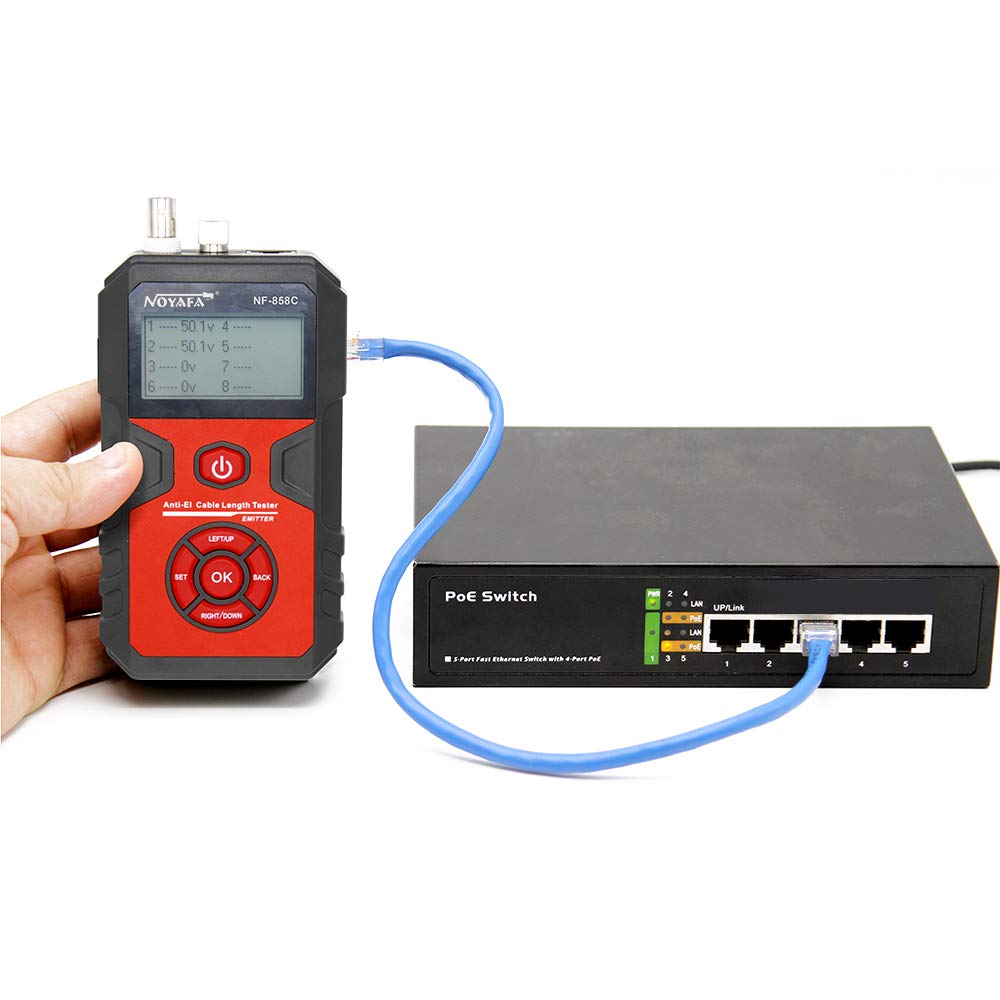

- 포트 플래시는 PoE 스위치와 연결된 대상 케이블을 직접 찾습니다.
- 적색 표시등은 광섬유 케이블 결함을 확인합니다.
- PoE 스위치의 전압을 감지합니다.

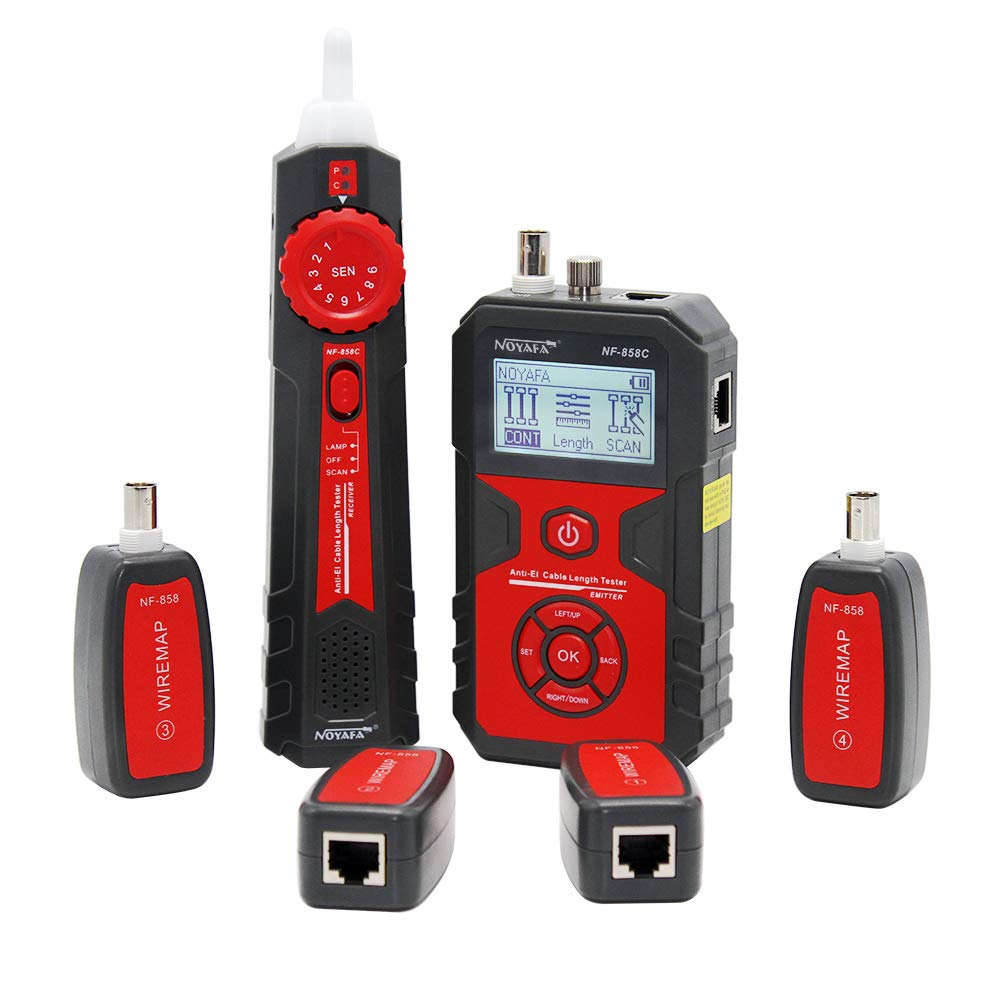

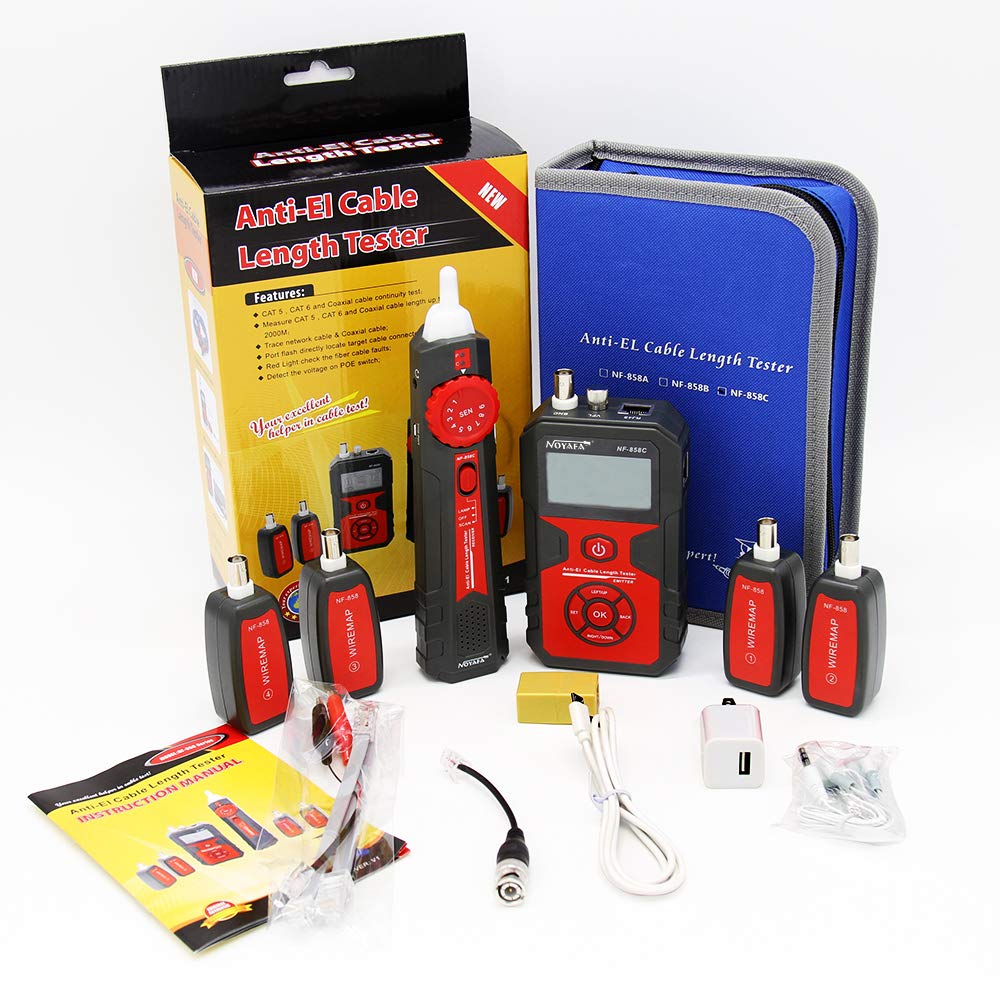

- 구성품: 송신기 * 1, 수신기 * 1, 리모컨 * 4, 이어폰 * 1, 악어 클립 * 1, BNC-RJ11 어댑터 케이블 * 1, 휴대용 파우치 * 1, 8P 네트워크 케이블 * 1, 충전 어댑터 * 1, 8Pextender 어댑터 *1, 리튬 배터리 *2, 사용 설명서 * 1
Quick Details
Quick Details

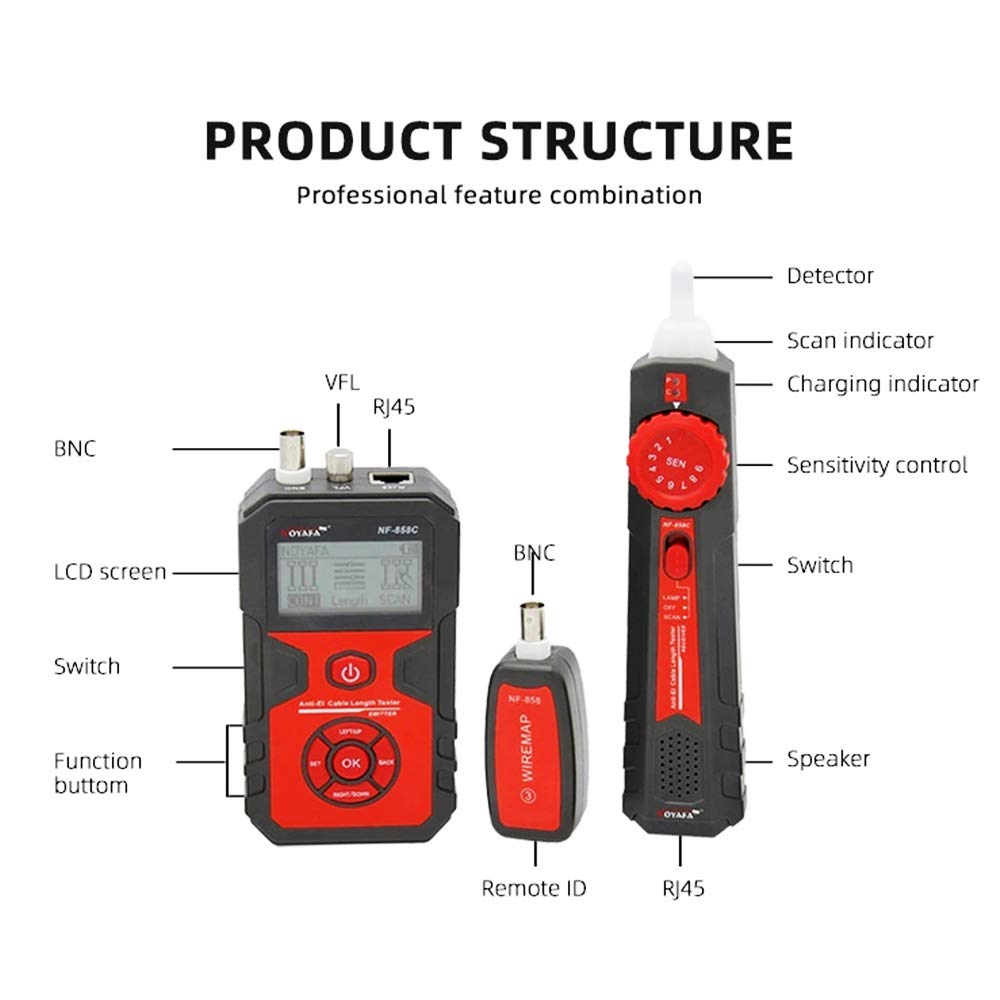

TRANSMITTER
Indicator: LCD 58x40mm with backlight
Tone frequency for tracing: 130 KHz
Max. distance of tracing: 6,562ft / 2,000m
Max. distance of cable map: 6,562ft / 2,000m
Test cable type: CAT5, CAT6, Coaxial
Compatible connectors: RJ45, BNC, VFL, Micro USB
Max. signal voltage: 9 +-1 Vp-p
Function and faults LCD display: LCD display (length, wire map, scan, short, no adapter, low battery)
Test record storage: 6 groups
Battery type: 3.7V 1,000mAh lithium battery
Dimension(LxWxD): 5.3 x 3.1 x 1.4 inches / 135 x 78 x 35mm
RECEIVER
Frequency: 130 KHz
Low battery indicate: 3.5+-0.2V
Battery type: 3.7V 1,000mAh lithium battery
Dimension(LxWxD): 8.0 x 1.8 x 1.3 inches / 203 x 45 x 33mm
REMOTE UNIT
Compatible connectors: RJ45, BNC
Remote: 4 pcs
Dimension (LxWxD): 4.2 x 1.2 x 0.9 inches / 107 x 30 x 24mm

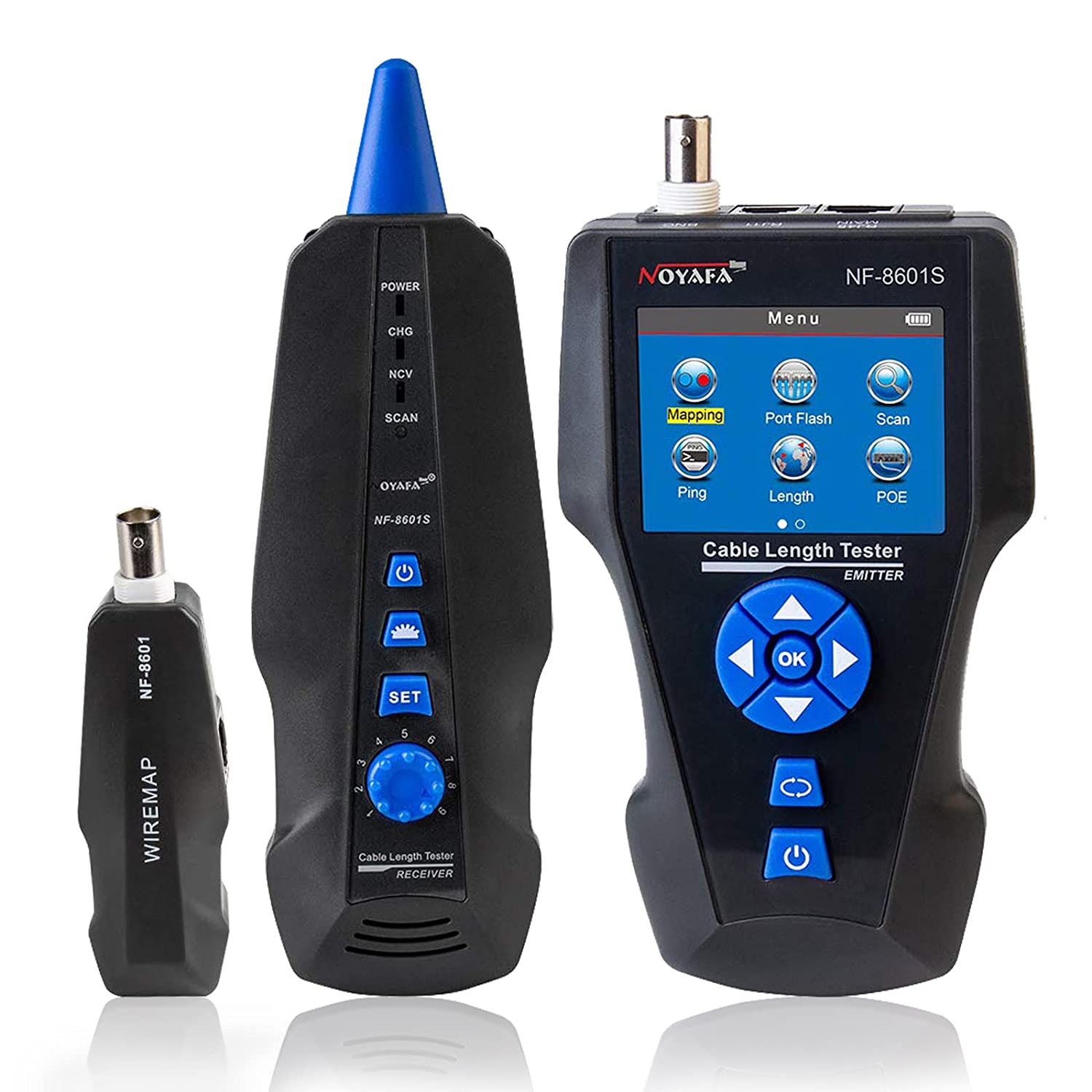

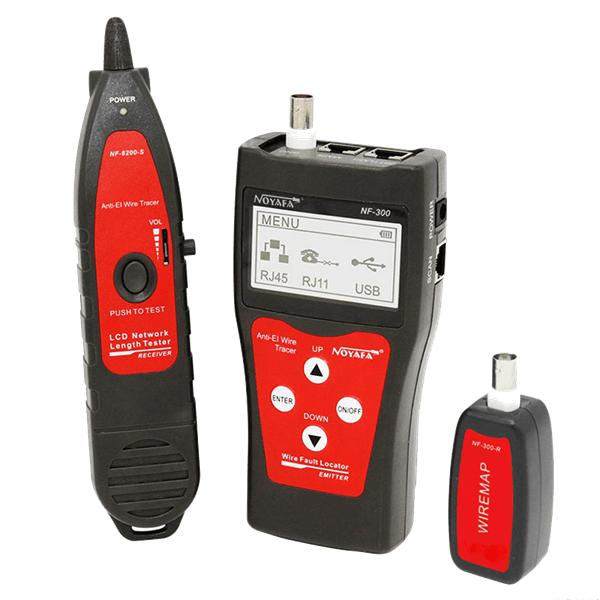

Differences Between Noyafa NF-858C vs 300 vs 8601s vs 715 Cable Tester
| NF-858C | NF-300 | NF-8601s | NF-715 |
| $78.54 | $63.65 | $138.99 | $228.34 |
| ✔️ Cable tracing | ✔️ Cable tracing | ✔️ Cable tracing | ✔️ Route tracing |
| ✔️ Wiremapping | ✔️ Wiremapping | ✔️ Wiremapping | ✔️Wiremapping |
| ✔️ BNC (Coaxial) | ✔️ BNC (Coaxial) | ✔️ BNC (Coaxial) | ✔️ BNC (Coaxial) |
| ❌ IP camera test | ❌ IP camera test | ❌ IP camera test | ✔️ IP camera test |
| ✔️ RJ45 | ✔️ RJ45 | ✔️ RJ45 | ✔️ RJ45 |
| ✔️ RJ11 | ✔️ RJ11 | ✔️ RJ11 | ❌ RJ11 |
| ❌ CAT7 | ❌ CAT7 | ✔️ CAT7 | ✔️ CAT7 |
| ✔️ Fiber optic cable | ❌ Fiber optic cable | ❌ Fiber optic cable | ❌ Fiber optic cable |
| ❌ TDR | ❌ TDR | ✔️ TDR | ✔️ TDR |
| ✔️ PoE Checking | ❌ PoE Checking | ✔️ PoE Checking | ✔️ PoE Checking |
| ❌ PING | ❌ PING | ✔️ PING | ✔️ PING |
| ✔️ Port flash | ✔️ Port flash | ✔️ Port flash | ✔️ Port flash |
| ✔️ Lamp | ❌ Lamp | ✔️ Lamp | ❌ Lamp |
| ❌ Crimping quality | ❌ Crimping quality | ✔️ Crimping quality | ❌ Crimping quality |
| ✔️ NCV | ❌ NCV | ✔️ NCV | ❌ NCV |
| ✔️ Length test | ✔️ Length test | ✔️ Length test | ✔️ Length test |

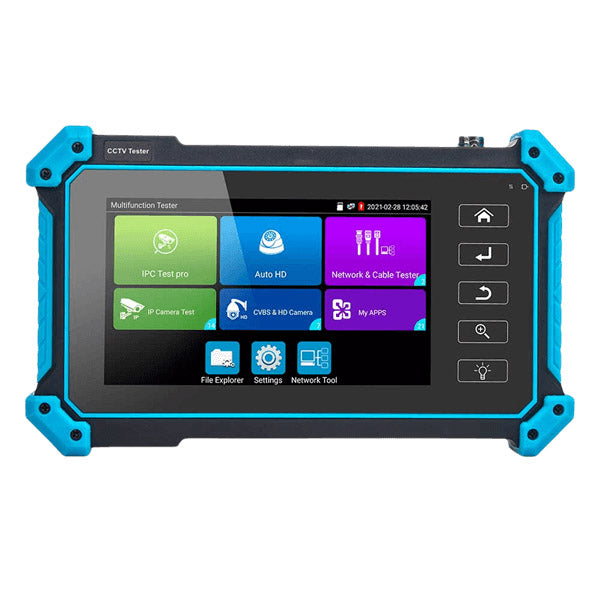

| ✔️ LCD display(58*40) | ✔️ LCD display(64*32) | ✔️ LCD display(320*240) | ✔️ 5'' IPS touch screen, 1920x1080 resolution |
| ✔️ Lithium battery | ✔️ Lithium battery | ✔️ Lithium battery | ✔️ Lithium battery |
| 🛒 Buy It Now | 🛒 Buy It Now | 🛒 Buy It Now | 🛒 Buy It Now |
Customer Reviews
Noyafa NF-858C Cable Tracer

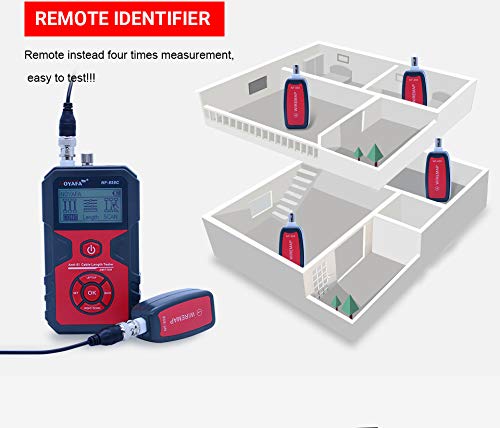

This product is quite useful for determining the length of a cable and identifying any broken cables. It allows for tracking up to 4 cables with remote sensors.
This cable checker is a great tool for verifying wired connections between switches, routers, and other network devices. It's Worth
I must say, it's been a game-changer for me as a cabling repairer. The built-in VFL and 4 remote units have made my job so much easier. I highly recommend this product to anyone in the industry.
I used to struggle with home cabling until I discovered this tool - the CAT6 tester! Now, I can easily test my cabling with remote units and enjoy a seamless internet connection. In my opinion, this tool is highly recommended for anyone who wants to ensure their cabling is top-notch.
