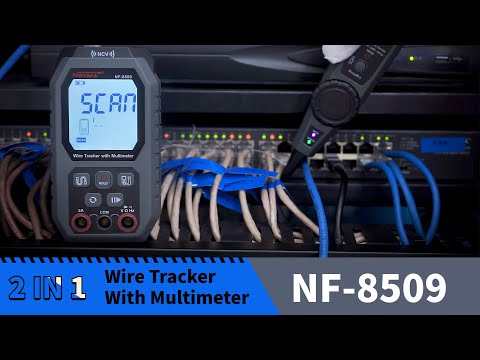

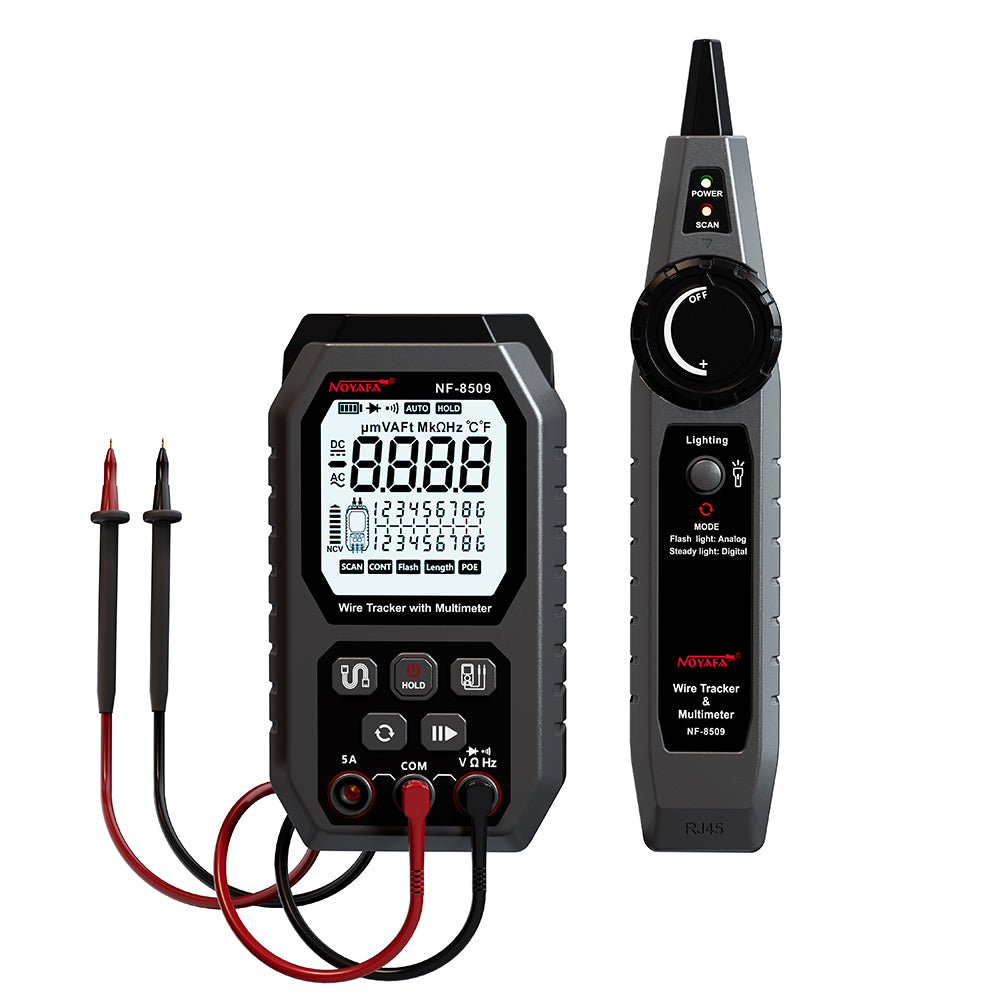

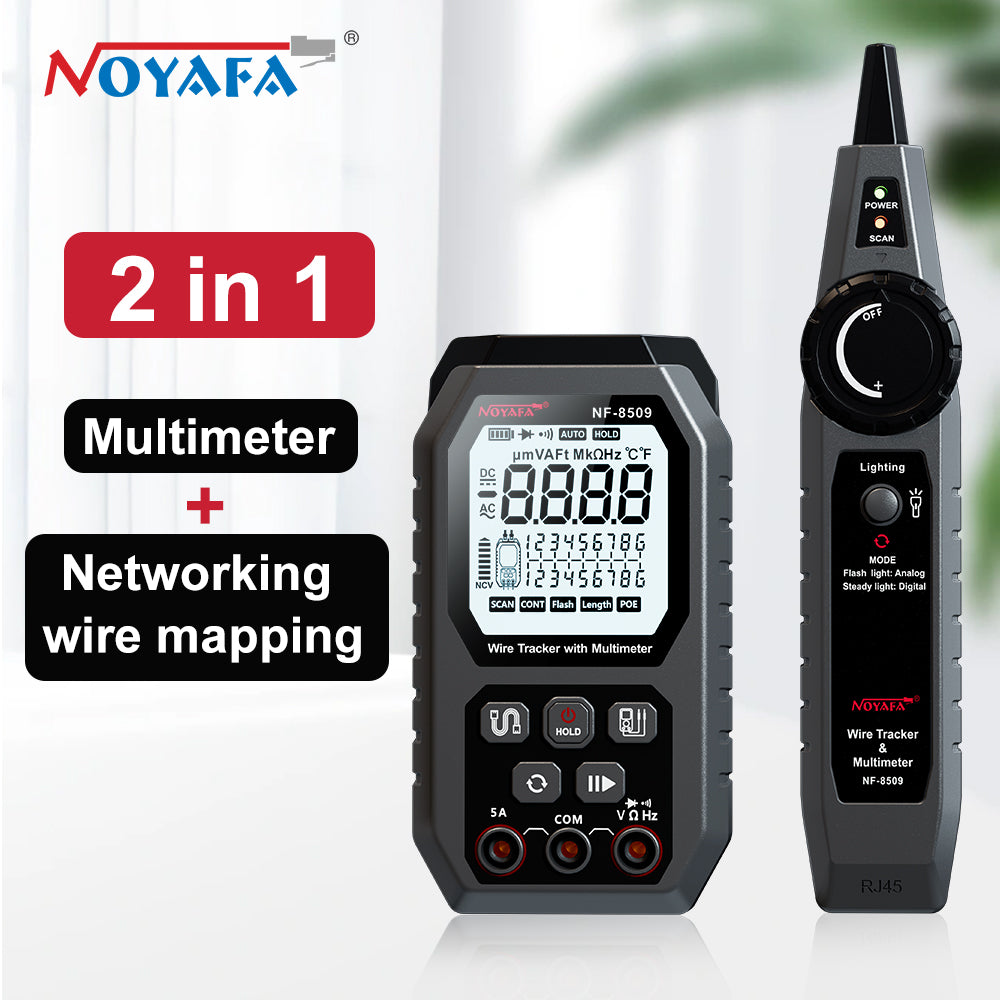

[New Arrival] Noyafa NF-8509 2 in 1 Wire Tracker with Multimeter for Electromechanical Testing, Network Testing, Cable Detection

[New Arrival] Noyafa NF-8509 2 in 1 Wire Tracker with Multimeter for Electromechanical Testing, Network Testing, Cable Detection

$89.89
$89.89
Sale Sold out
Shipping calculated at checkout.

30-Days Money Back Guarantee        Fast, Free Shipping

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Features & Benefits

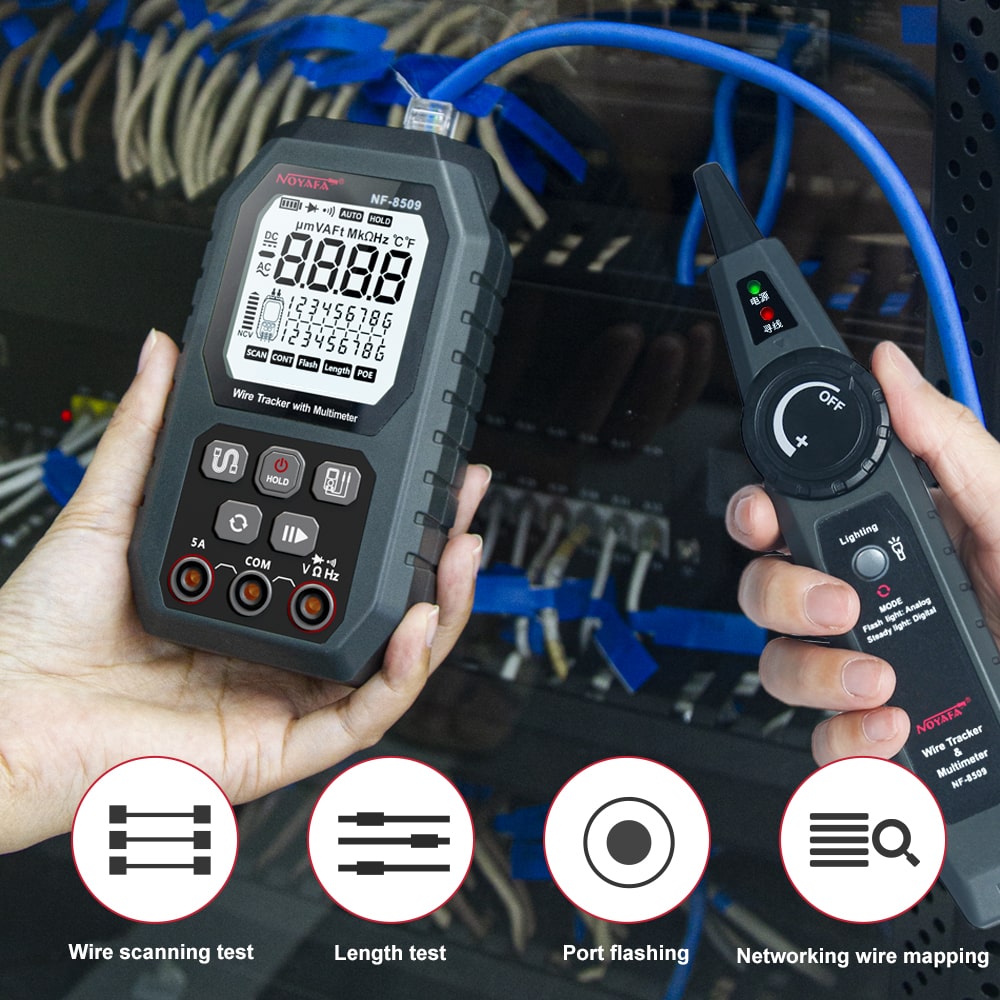

  • Versatile Functionality. The NF-8509 offers a wide range of features including cable tracking, wire map testing, cable length testing, electric circuit voltage / current / resistance measurement, and more.
  • Reliable Precision. With a precision circuit board and intelligent computing chip, the NF8509 delivers high-precision measurements and accurate results.

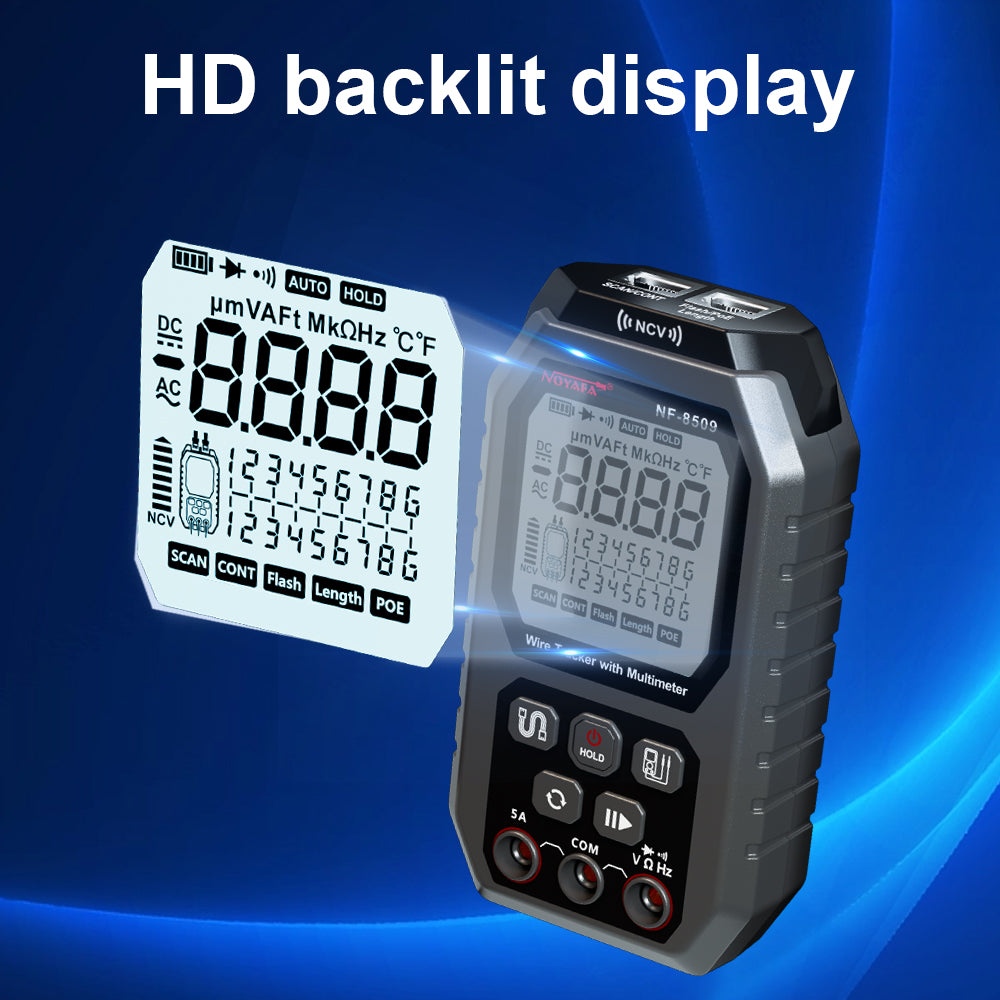

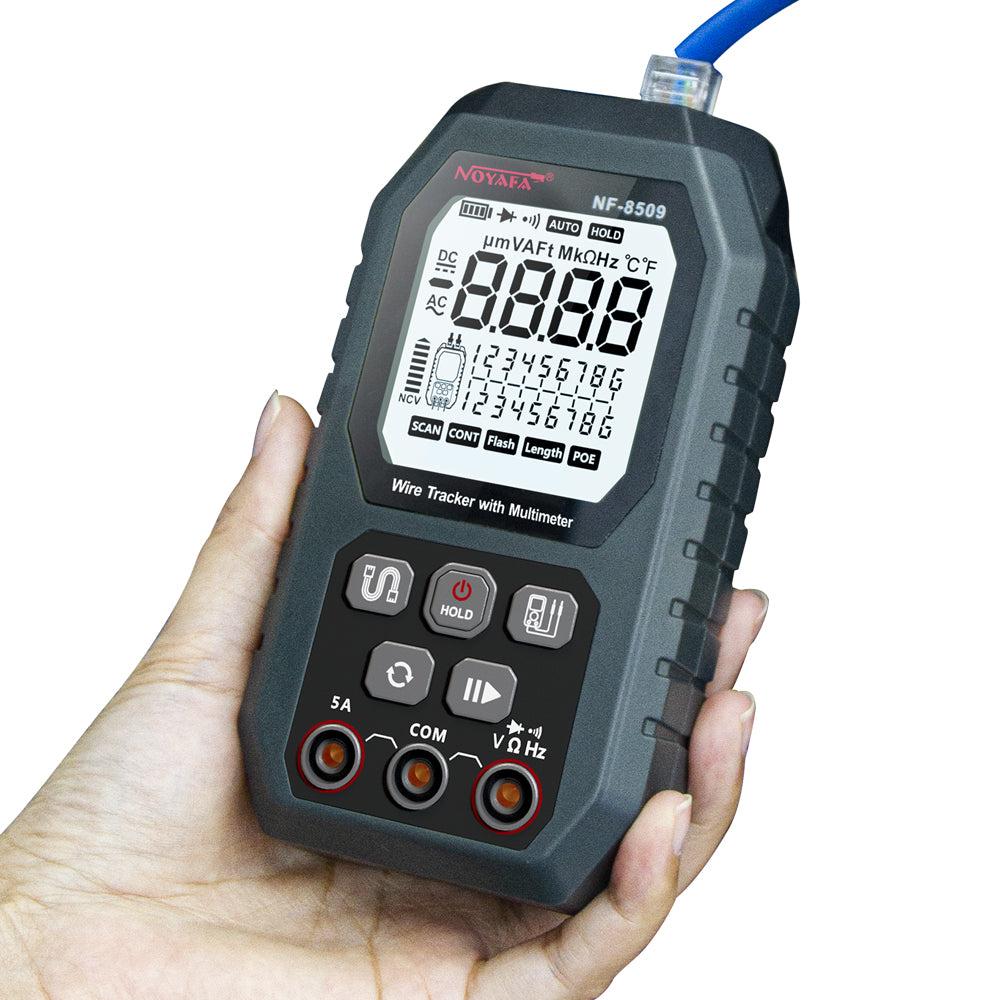

  • Clear and Convenient Display. The high-definition backlit display provides clear visibility of measurement data, making it easy to read and operate.
  • Anti-interference Mode: Switchable between anti-interference wire scanning and normal wire scanning. Proofreading network line sequence. Wire scanning quasi-responsive allows for responsive wire scanning.
  • Port Flash. Identifies the docking port by flashing the indicator light of the connecting network cable port at the same frequency, ensuring safety.
  • PoE test to quickly identify PoE devices. Supports testing of standard PoE devices.
  • Non-Contact Voltage Testing (NCV). Safely detects high and low AC voltages without physical contact.
  • Bright and Clear LED Lighting. Equipped with bright LED lighting for clear visibility in dark environments.
  • Wide Application Range. Suitable for various scenarios such as electromechanical testing, network testing, cable detection, and home appliance testing, making it a versatile tool for professionals in different fields.

Quick Details

Model: NF-8509
Auto-off: Yes

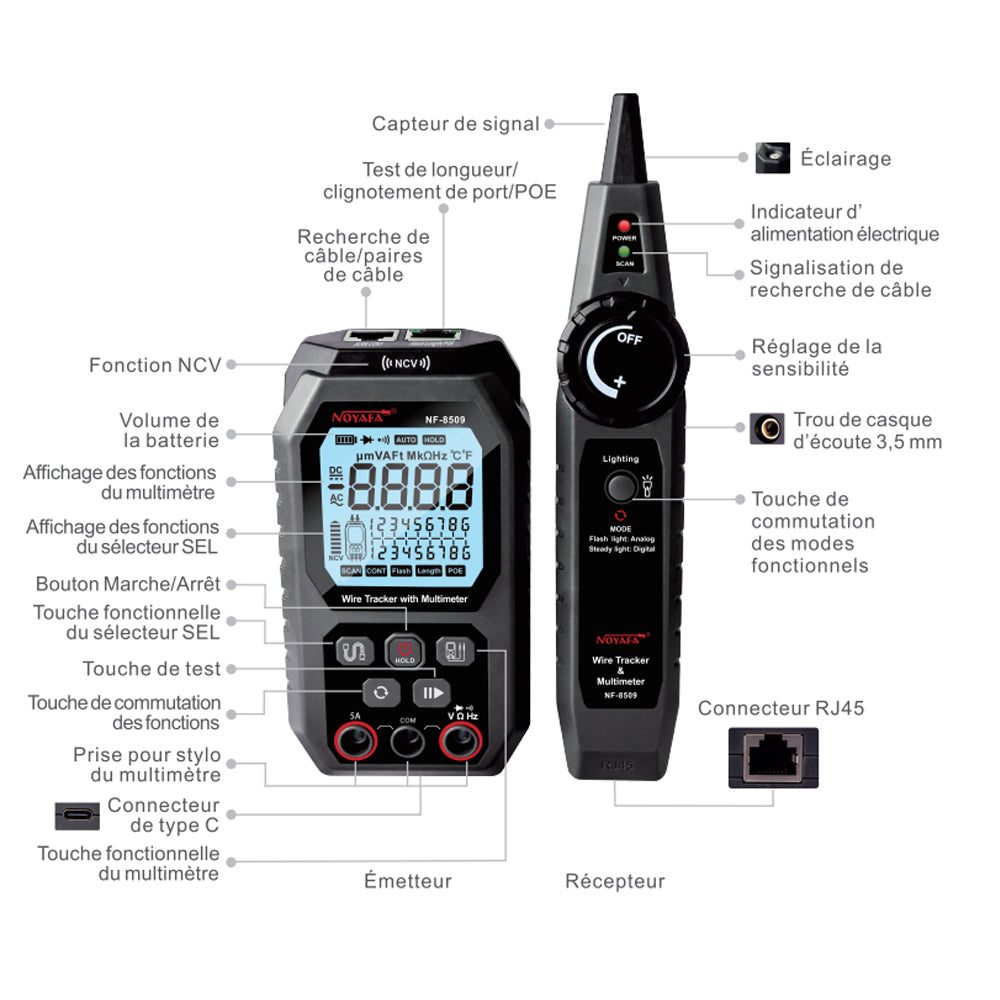

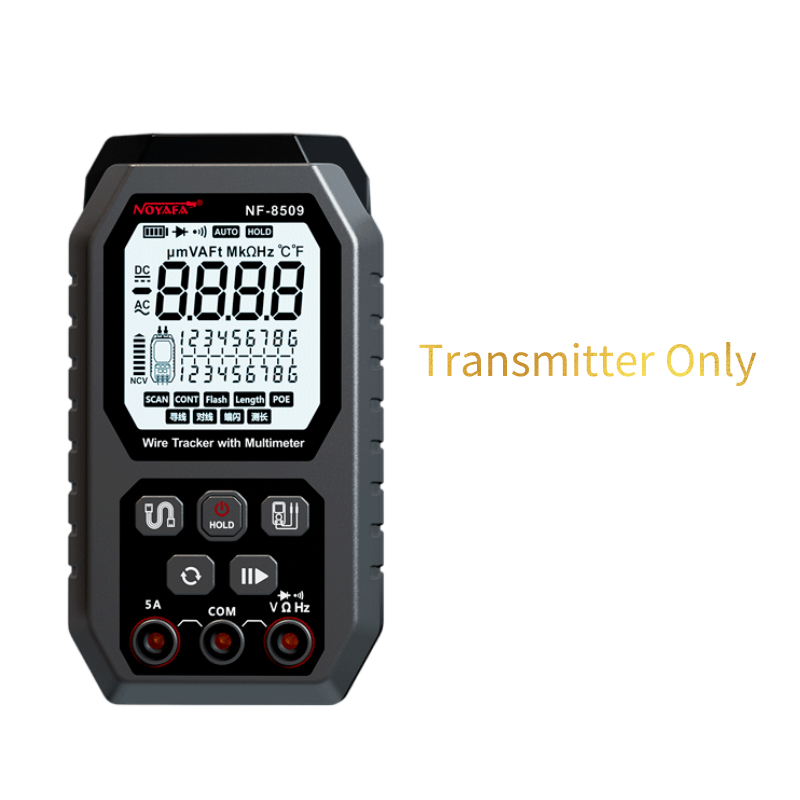

TRANSMITTER

Wire mapping test: Yes
Wire scanning: RJ45 1969ft / 600m
Wire length test: 16 - 656ft (+-9.8ft) / 5 - 200m (+-3m)
Port flashing test: 32.8ft (10m) / 328(100m) / 3,280ft(1,000m)
PoE: 4-core / 8-core power supply detection. PoE voltage detection
Continuity test: 1) Detects the connectivity performance of wires and various conductors. The buzzer will sound when resistance is below 50Ω.
2) Identify the polarity and forward voltage drop of diodes (0-3.3V)
NCV function: Inductive voltage detector (0-4 levels)
Resistance measurement: 600Ω - 60MΩ (accuracy:+-1.0%+5)
AC/DC voltage measurement: 600mV - 610V (DC accuracy: +-0.5% + 3; AC accuracy: +-0.5%+3)
AC/DC measurement: 1mA - 3A DC (accuracy: +-0.8%  + 3)
Power: 3.7V/1,500mA lithium battery
Ambient temperature display: Yes

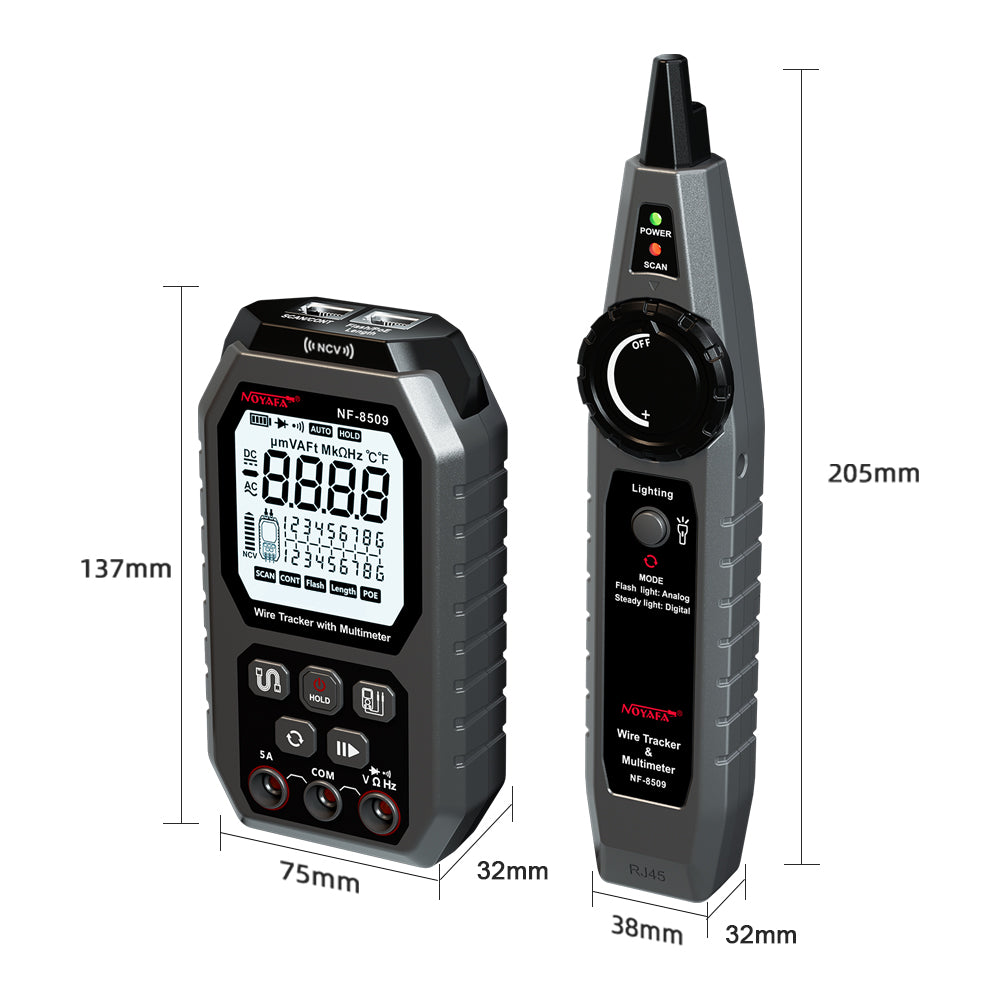

Dimension: 5.4 x 3.0 x 1.3 inches / 137.5  x 76 x 34mm

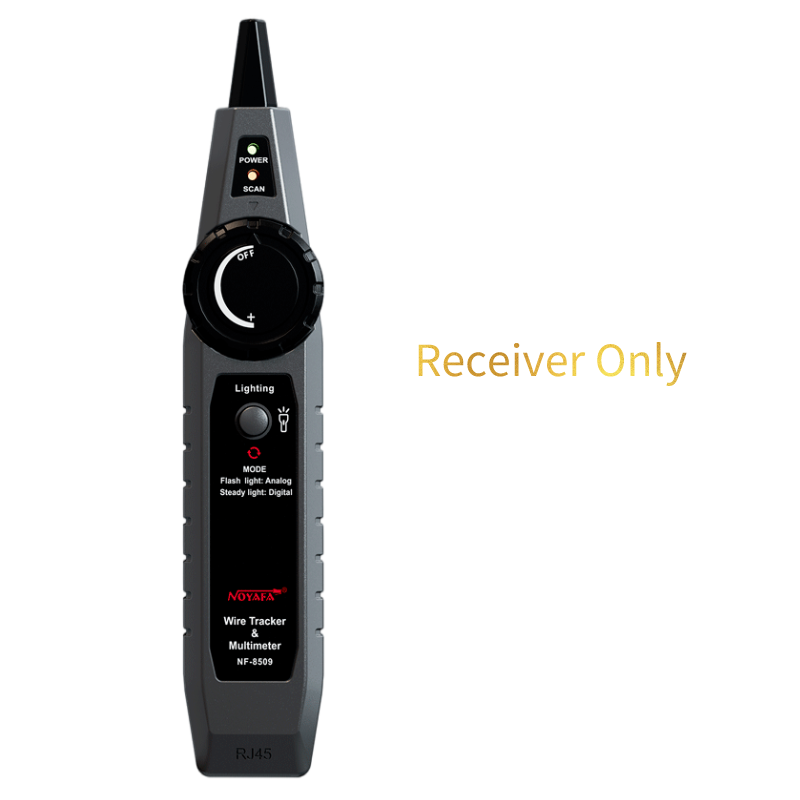

RECEIVER

LED light: Yes
Telephone function: Yes
Power: DC9V (exclusive)
Max. working current: <=150mA
Dimension: 8.1 x 1.5 x 1.1 inches / 204.9 x 38 x 29mm
