Noyafa NF-8601W Network Cable Tester Receiver Unit Only

Model: NF-8509
Auto-off: Yes

TRANSMITTER

Wire mapping test: Yes
Wire scanning: RJ45 1969ft / 600m
Wire length test: 16 - 656ft (+-9.8ft) / 5 - 200m (+-3m)
Port flashing test: 32.8ft (10m) / 328(100m) / 3,280ft(1,000m)
PoE: 4-core / 8-core power supply detection. PoE voltage detection
Continuity test: 1) Detects the connectivity performance of wires and various conductors. The buzzer will sound when resistance is below 50Ω.
2) Identify the polarity and forward voltage drop of diodes (0-3.3V)
NCV function: Inductive voltage detector (0-4 levels)
Resistance measurement: 600Ω - 60MΩ (accuracy:+-1.0%+5)
AC/DC voltage measurement: 600mV - 610V (DC accuracy: +-0.5% + 3; AC accuracy: +-0.5%+3)
AC/DC measurement: 1mA - 3A DC (accuracy: +-0.8%  + 3)
Power: 3.7V/1,500mA lithium battery
Ambient temperature display: Yes
Dimension: 5.4 x 3.0 x 1.3 inches / 137.5  x 76 x 34mm

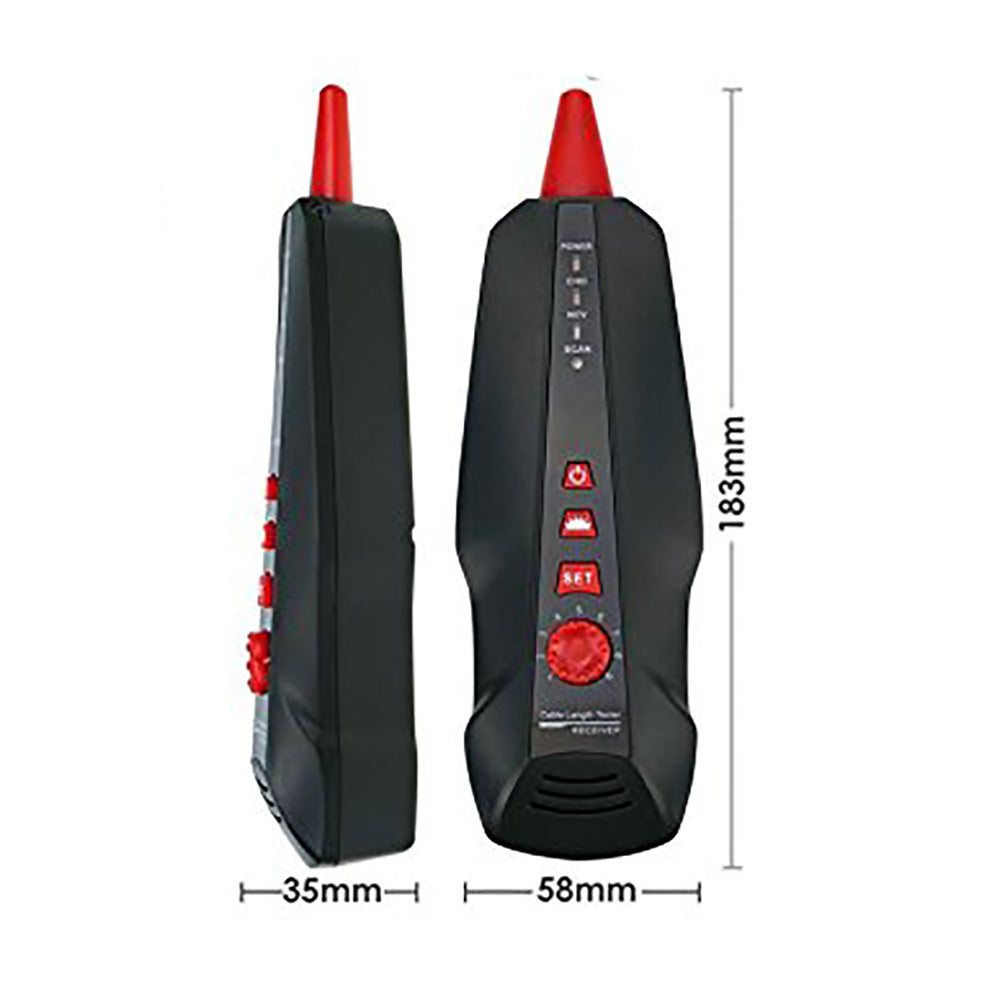

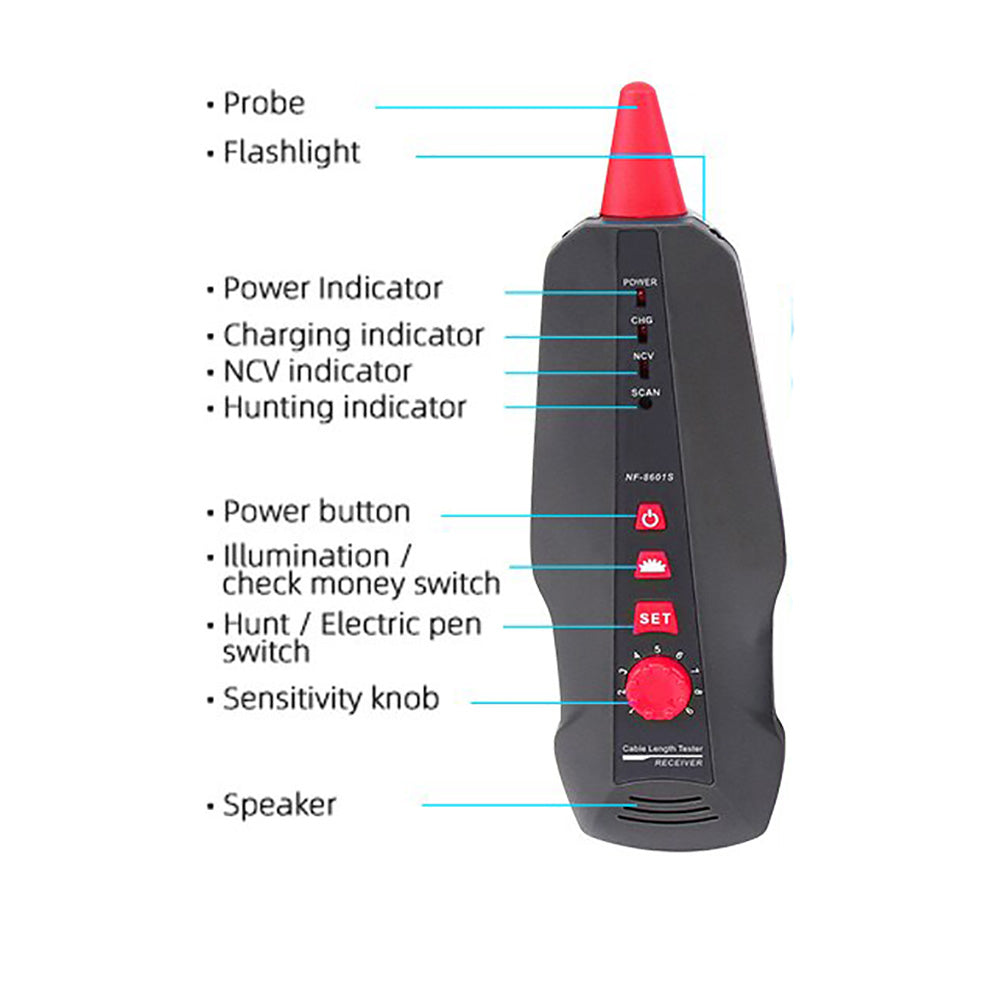

RECEIVER

LED light: Yes
Telephone function: Yes
Power: DC9V (exclusive)
Max. working current: <=150mA
Dimension: 8.1 x 1.5 x 1.1 inches / 204.9 x 38 x 29mm

To be updated ...
