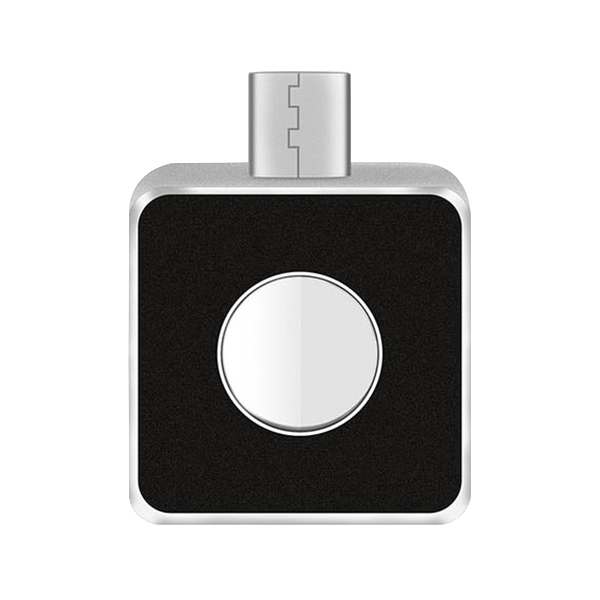

Noyafa NF-586 Android USB-C용 적외선 열화상 카메라, 256*192 고해상도, 6색 팔레트
Noyafa NF-586 Android USB-C용 적외선 열화상 카메라, 256*192 고해상도, 6색 팔레트
픽업 사용 가능 여부를 로드할 수 없습니다.
Fast, Free Shipping
특징
-

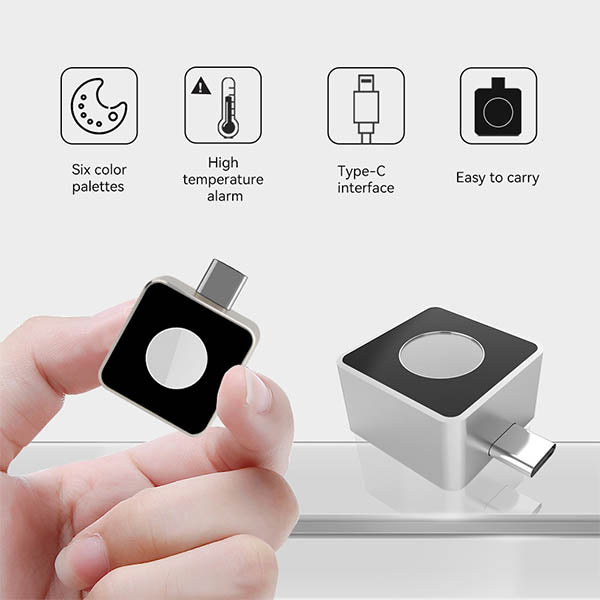

풍부한 이미징 효과 - 3.2mm 렌즈, 6개의 열 색상 팔레트 및 고해상도 감지기를 갖춘 적외선 카메라는 이상적인 이미지를 빠르게 생성할 수 있습니다.
-

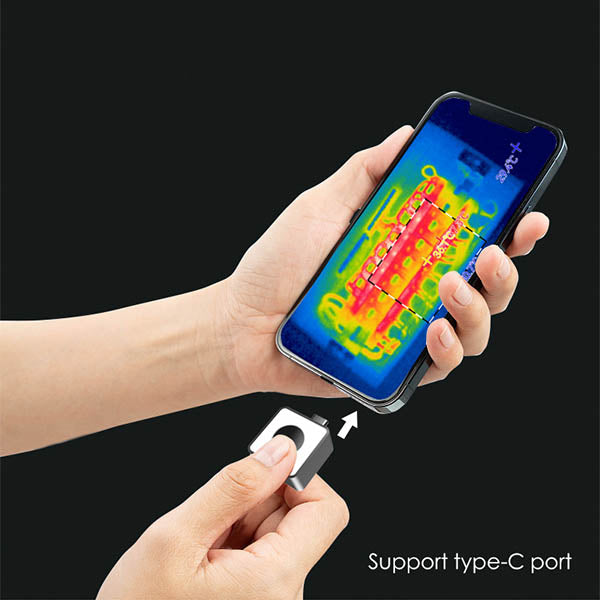

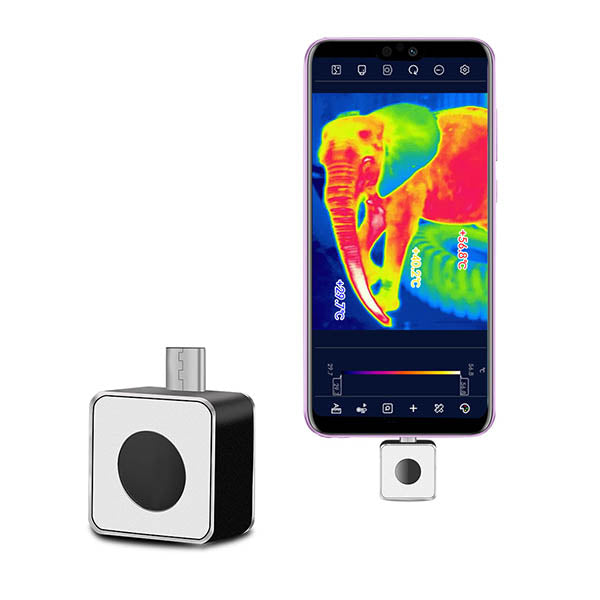

플러그 앤 플레이 - 휴대폰을 연결하여 즉시 시작한 다음 무료 앱을 사용하여 어디에 있든 대상 물체의 히트 맵을 확인하십시오.
-

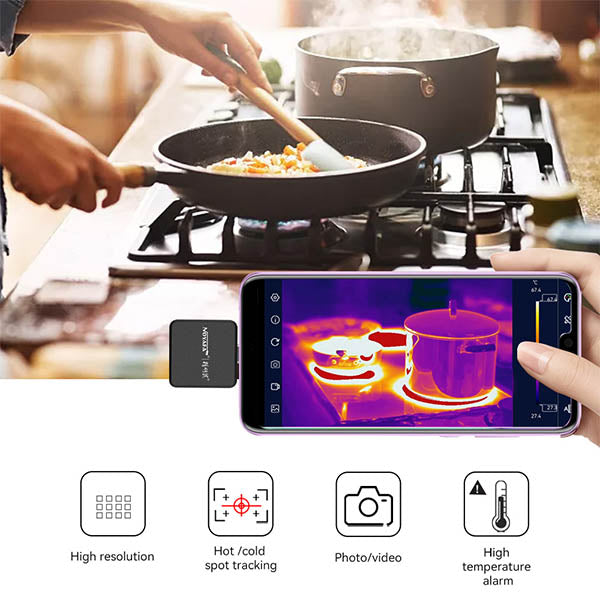

개인화 - 영역 온도 측정, 고온 및 저온 추적, 고온 경고.
-
넓은 온도 측정 범위 - 캡처 온도 -15 ° C*450 ° C (59 ° F-842 ° F), 모든 것을 볼 수 있음
-

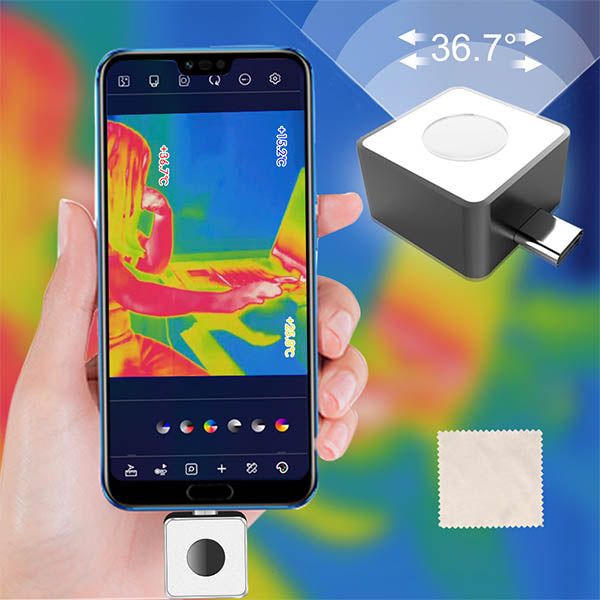

넓은 시야각 - 56 ° 시야각으로 더 많은 이미지를 캡처할 수 있습니다.
-
손쉬운 작업 공유 - 열화상 카메라로 생성된 이미지와 동영상은 쉽게 공유할 수 있도록 자동으로 휴대폰에 저장됩니다.
-

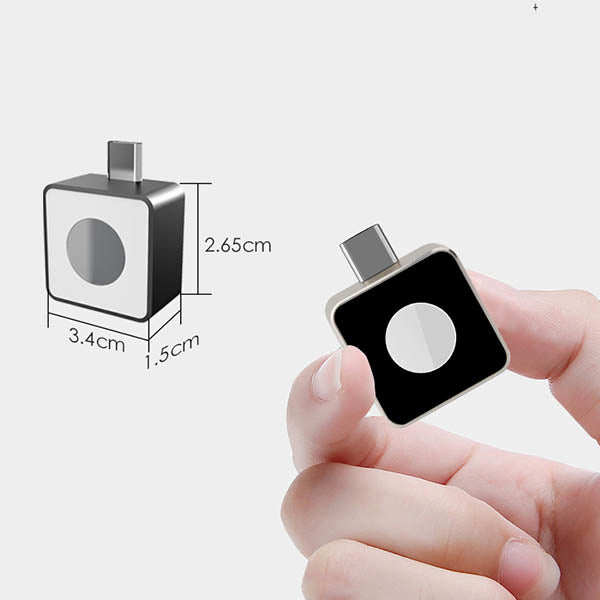

견고하고 내구성이 뛰어난 알루미늄 합금 쉘, 최대 IP54 수준의 방수 및 방진.

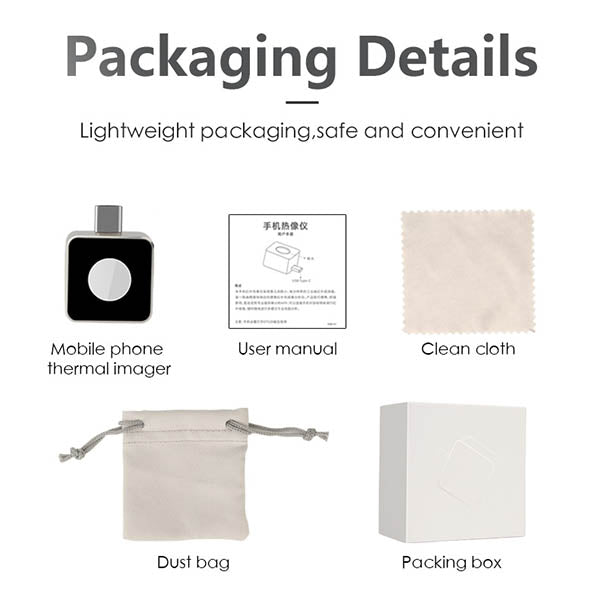

- 구성품 - 휴대폰 열화상 카메라 *1, 깨끗한 천 *1, 먼지 봉투 *1, 사용 설명서 *1
빠른 세부 정보
빠른 세부 정보
모델: NF-586
감지기 해상도: 256x192
FOV: 56° x 42°
스펙트럼 범위 8-14μm
프레임 속도 25Hz
NETD <50mK @25℃
렌즈 3.2mm
온도 측정 범위 -15℃~600℃
온도 측정 정확도 ± 2 ° Cor ± 2% of reading
온도 측정 최고, 최저, 중심점 및 면적 측정 지원

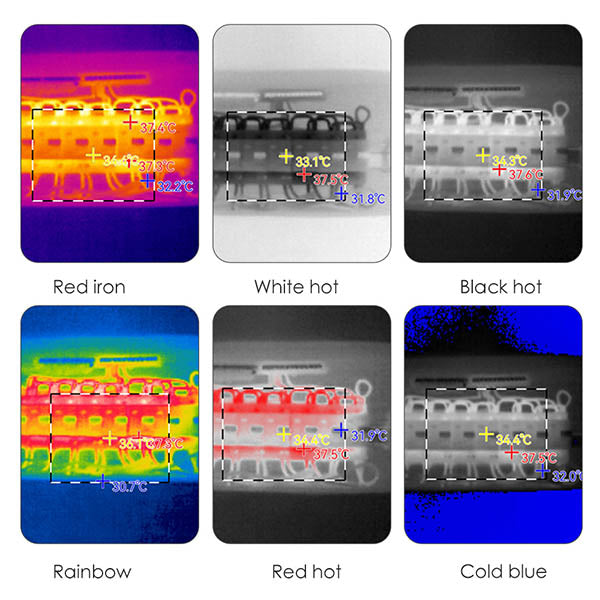

색상 팔레트 6
Q&A
Q&A
업데이트 중 ...11










I am very pleased with my purchase of the thermal imaging camera. It has proven to be incredibly useful, allowing me to identify gaps in insulation, locate studs, and detect wet spots. I even used it to find a buried lawn drain. The camera's resolution is high enough to provide clear and easy-to-identify images, making it an invaluable tool for a wide range of applications. One minor complaint I have is that the connector is not long enough, which requires me to remove my phone case. Overall, I highly recommend this thermal imaging camera to anyone looking for a reliable and versatile tool. The camera's ability to detect heat signatures and provide clear images makes it a must-have for both professional and personal use.
I am very pleased about everythink. The cooperation, the shipping the imaging the quality. only missing is an extension cable and a type-c to mini usb . that would be nice. Sometimes the camera would be better without to be attached to the phone
Goed product
